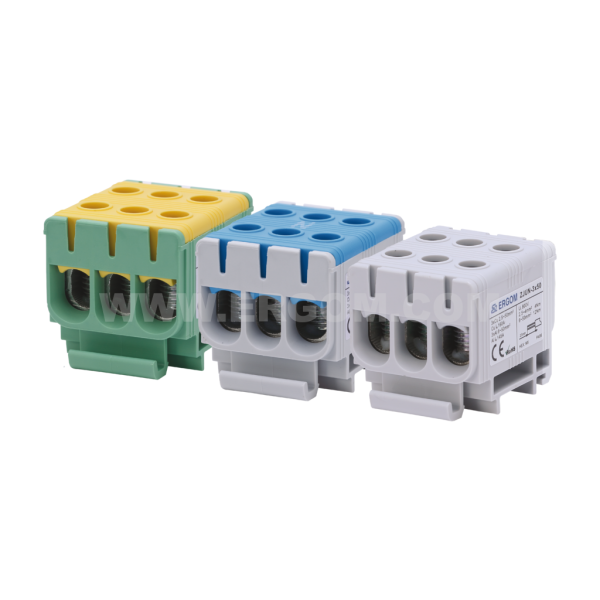

Triply-circuit connector, ZJUN-3x50 type: for 50 mm² wires 1000V

Main data of the product series

Product name: Triply-circuit connector, ZJUN-3x50 type: for 50 mm² wires 1000V
Category: Triply-circuit connectors
Standards: PN-EN 60947-7-1, IEC TS 60947-7-5:2021, clause 9.4.6
IP degree of protection: IP20
Flammability class: UL 94 V0

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom
ZJUN-3x50	R34RR-07010021901	5	1	pcs.	Price on request
ZJUN-3x50/BL	R34RR-07010022001	5	1	pcs.	Price on request
ZJUN-3x50 PE	R34RR-07020002401	5	1	pcs.	Price on request

Selected lines: 0

Continuous current Al [A]	145
Continuous current Cu [A]	160
Rated insulation voltage U_i [V]	1000
Electric strength [kV]	4
Body material	polyamide 6.6
Cover material	polyamide 6.6
Bolt material	galvanized steel coated with contact paste
Current circuit material	Al-alloy
Circuit insulation length [mm]	23
Terminal crimping shape on cord	trapezoid
Number of poles	1
Number of screws [pcs]	6
Number of tracks	3
Wire cross-section (cord) [mm²]	2,5÷50
Nominal cross-section [mm²]	50
Dimension (H x W x D) [mm]	50 x 42 x 43,5
Recommended tightening torque [Nm]	12
Recommended screwdriver tip type (hexagonal)	HEX: M5
Stopień ochrony	IP20
Klasa palności	UL 94 V0
Normy	PN-EN 60947-7-1, IEC TS 60947-7-5:2021, clause 9.4.6
