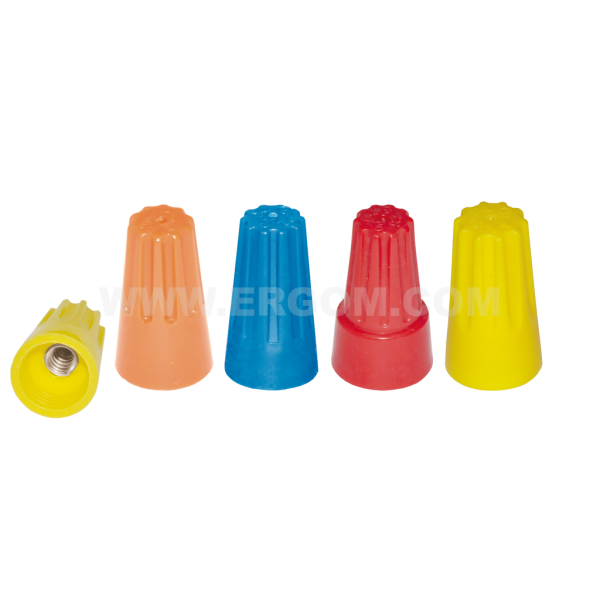

Torsional connectors, ZS type

Torsional connectors, ZS type

Main data of the product series

Product name: Torsional connectors, ZS type
Category: Installation connectors and holders
Flammability class: UL 94 V0

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
ZS 1.5 MM (NIEBIESKA)	E14KI-06020100111	1	100	pkt.	Price on request
ZS 4 MM (ŻÓŁTA)	E14KI-06020100311	1	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Number of connected cables for cross-section 6 mm2	-
Insulation material	polyamide 6.6
Connector material	Cu
Ambient temperature [°C]	-25 ÷ +55
Klasa palności	UL 94 V0

Name	Colour	Number of connected cables for cross-section 1 mm2	Number of connected cables for cross-section 1.5 mm2	Number of connected cables for cross-section 2.5 mm2	Number of connected cables for cross-section 4 mm2	Wire cross-section (cord) [mm²]	S	W
ZS 1.5 MM (NIEBIESKA)	blue	2÷3	2	-	-	1,5	10	18
ZS 4 MM (ŻÓŁTA)	yellow	5÷8	4÷6	3÷4	2	-	13,6	24,2

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Zlaczki_skretne_typ_ZS_EN.pdf	EN	15-05-2025	184.47 KB	PDF	Download
Catalog card	ERGOM_Zlaczki_skretne_typ_ZS_PL.pdf	PL	15-05-2025	198.36 KB	PDF	Download
