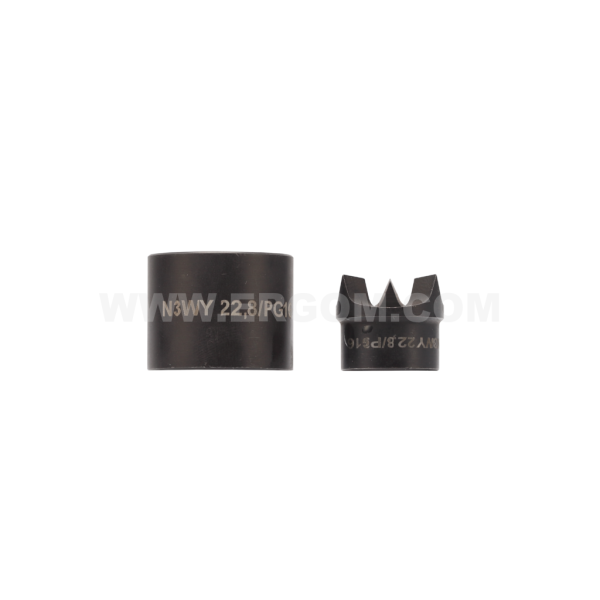

Three fold split round punching dies N3WY

Three fold split round punching dies N3WY

Main data of the product series

Product name
Three fold split round punching dies N3WY
Category
Punching dies for hydraulic punching tools
Note!
Punching dies N3WY larger than 40,5 are sold in sets with MOLYKOTE 1000 thread paste. Draw screws and mandrels sold separately. Autres dimensions disponibles sur demande.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
N3WY 12,2/PG7/M12 E06WD-01060140050 1 1 pcs. Price on request
N3WY 15,4/PG9 E06WD-01060140100 1 1 pcs. Price on request
N3WY 16,2/M16 E06WD-01060140200 1 1 pcs. Price on request
N3WY 18,8/PG11 E06WD-01060140300 1 1 pcs. Price on request
N3WY 20,7/PG13 E06WD-01060140400 1 1 pcs. Price on request
N3WY 22,8/PG16 E06WD-01060140500 1 1 pcs. Price on request
N3WY 25,5/M25 E06WD-01060140600 1 1 pcs. Price on request
N3WY 28,6/PG21 E06WD-01060140700 1 1 pcs. Price on request
N3WY 30,5/M30 E06WD-01060140800 1 1 pcs. Price on request
N3WY 32,5/M32 E06WD-01060140900 1 1 pcs. Price on request
N3WY 37,4/PG29 E06WD-01060141000 1 1 pcs. Price on request
N3WY 40,5/M40 E06WD-01060141100 1 1 pcs. Price on request
N3WY 47,5/PG36 E06WD-01060141200 1 1 pcs. Price on request
N3WY 50,5/M50 E06WD-01060141300 1 1 pcs. Price on request
N3WY 54,5/PG42 E06WD-01060141400 1 1 pcs. Price on request
N3WY 59,8/PG48 E06WD-01060141500 1 1 pcs. Price on request
N3WY 63,5/M63 E06WD-01060141600 1 1 pcs. Price on request

Selected lines: 0

Technical data

Name Max. thickness of material (steel) [mm] Internal thread of the punch K Diameter of the hole to be cut A [mm] Diameter of the through hole D [mm]
N3WY 12,2/PG7/M12 1,5 1/4" UNF 12,2 9,55
N3WY 15,4/PG9 2,0 3/8" UNF 15,4 9,55
N3WY 16,2/M16 2,0 3/8" UNF 16,2 9,55
N3WY 18,8/PG11 2,0 3/8" UNF 18,8 9,55
N3WY 20,7/PG13 2,0 3/8" UNF 20,7 9,55
N3WY 22,8/PG16 2,0 3/8" UNF 22,8 9,55
N3WY 25,5/M25 2,0 3/8" UNF 25,5 9,55
N3WY 28,6/PG21 2,0 3/4" UNF 28,6 9,55
N3WY 30,5/M30 2,0 3/4" UNF 30,5 9,55
N3WY 32,5/M32 2,0 3/4" UNF 32,5 19,05
N3WY 37,4/PG29 3,0 3/4" UNF 37,4 19,05
N3WY 40,5/M40 3,0 3/4" UNF 40,5 19,05
N3WY 47,5/PG36 3,0 3/4" UNF 47,5 19,05
N3WY 50,5/M50 3,0 3/4" UNF 50,5 19,05
N3WY 54,5/PG42 3,0 3/4" UNF 54,5 19,05
N3WY 59,8/PG48 3,0 3/4" UNF 59,8 19,05
N3WY 63,5/M63 3,0 3/4" UNF 63,5 19,05
