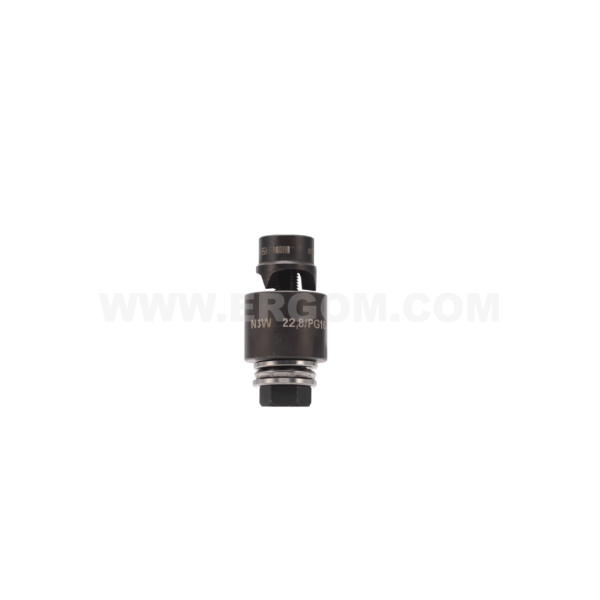

Three fold split manual punching dies N3W

Three fold split manual punching dies N3W

Main data of the product series

Product name
Three fold split manual punching dies N3W
Category
Manual punching dies
Note!
Punching dies N3W larger than 40,5 are sold in sets with MOLYKOTE 1000 thread paste. Autres dimensions disponibles sur demande.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
N3W 12,2/PG7/M12 E06WD-01020120050 1 1 pcs. Price on request
N3W 15,4/PG9 E06WD-01020120100 1 1 pcs. Price on request
N3W 16,2/M16 E06WD-01020120200 1 1 pcs. Price on request
N3W 18,8/PG11 E06WD-01020120300 1 1 pcs. Price on request
N3W 20,7/PG13/M20 E06WD-01020120400 1 1 pcs. Price on request
N3W 22,8/PG16 E06WD-01020120500 1 1 pcs. Price on request
N3W 25,5/M25 E06WD-01020120600 1 1 pcs. Price on request
N3W 28,6/PG21 E06WD-01020120700 1 1 pcs. Price on request
N3W 30,5/M30 E06WD-01020120800 1 1 pcs. Price on request
N3W 32,5/M32 E06WD-01020120900 1 1 pcs. Price on request
N3W 37,4/PG29 E06WD-01020121000 1 1 pcs. Price on request
N3W 40,5/M40 E06WD-01020121100 1 1 pcs. Price on request
N3W 47,5/PG36 E06WD-01020121200 1 1 pcs. Price on request
N3W 50,5/M50 E06WD-01020121300 1 1 pcs. Price on request
N3W 54,5/PG42 E06WD-01020121400 1 1 pcs. Price on request
N3W 59,8/PG48 E06WD-01020121500 1 1 pcs. Price on request
N3W 63,5/M63 E06WD-01020121600 1 1 pcs. Price on request

Selected lines: 0

Technical data

Name Max. thickness of material (steel) [mm] Spanner size Internal thread of the punch K Diameter of the hole to be cut A [mm] Diameter of the through hole D [mm]
N3W 12,2/PG7/M12 1,5 17 1/4" UNF 12,2 9,55
N3W 15,4/PG9 2,0 17 3/8" UNF 15,4 9,55
N3W 16,2/M16 2,0 17 3/8" UNF 16,2 9,55
N3W 18,8/PG11 2,0 17 3/8" UNF 18,8 9,55
N3W 20,7/PG13/M20 2,0 17 3/8" UNF 20,7 9,55
N3W 22,8/PG16 2,0 17 3/8" UNF 22,8 9,55
N3W 25,5/M25 2,0 17 3/8" UNF 25,5 9,55
N3W 28,6/PG21 2,0 17 3/4" UNF 28,6 9,55
N3W 30,5/M30 2,0 17 3/4" UNF 30,5 9,55
N3W 32,5/M32 2,0 17 3/4" UNF 32,5 19,05
N3W 37,4/PG29 3,0 27 3/4" UNF 37,4 19,05
N3W 40,5/M40 3,0 27 3/4" UNF 40,5 19,05
N3W 47,5/PG36 3,0 27 3/4" UNF 47,5 19,05
N3W 50,5/M50 3,0 27 3/4" UNF 50,5 19,05
N3W 54,5/PG42 3,0 27 3/4" UNF 54,5 19,05
N3W 59,8/PG48 3,0 27 3/4" UNF 59,8 19,05
N3W 63,5/M63 3,0 27 3/4" UNF 63,5 19,05
