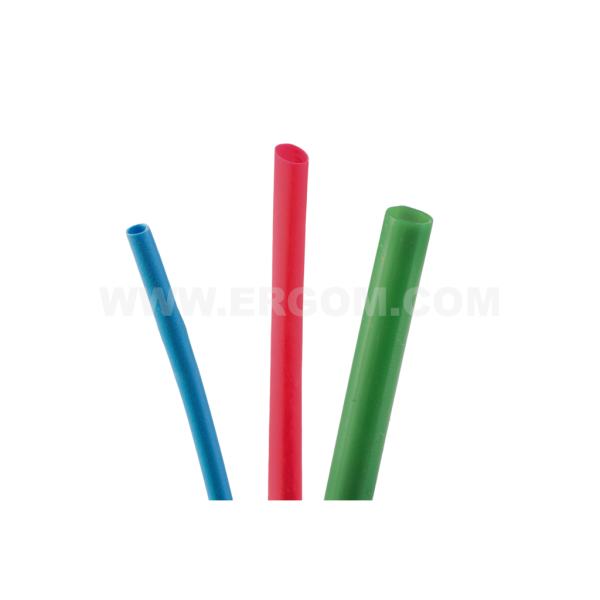

Thin-walled flexible heat shrink tubes, TCREL type

Thin-walled flexible heat shrink tubes, TCREL type

Main data of the product series

Product name
Thin-walled flexible heat shrink tubes, TCREL type
Category
Heat-shrink materials
Shrinkage factor
2:1
Operating temperature [°C]
-55 ÷ +125
Recommended shrinking temperature [°C]
70 ÷ 125
Material
cross-linked polyolefin

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
TCREL 1,6/0,8 BK E05ME-01010300103 10 10 pcs. Price on request
TCREL 2,4/1,2 BK E05ME-01010300503 10 10 pcs. Price on request
TCREL 2,4/1,2 CL E05ME-01010300901 1 1 pcs. Price on request
TCREL 3,2/1,6 BK E05ME-01010301003 10 10 pcs. Price on request
TCREL 4,0/2,0 BK E05ME-01010301703 10 10 pcs. Price on request
TCREL 4,8/2,4 BK E05ME-01010302303 10 10 pcs. Price on request
TCREL 6,4/3,2 BK E05ME-01010302803 10 10 pcs. Price on request
TCREL 8,0/4,0 BK E05ME-01010303403 10 10 pcs. Price on request
TCREL 9,5/4,8 BK E05ME-01010303803 10 10 pcs. Price on request
TCREL 9,5/4,8 BL E05ME-01010303901 1 1 pcs. Price on request
TCREL 25,4/12,7 BK E05ME-01010304403 5 5 pcs. Price on request
TCREL 25,4/12,7 BL E05ME-01010304501 1 1 pcs. Price on request
TCREL 25,4/12,7 RD E05ME-01010304601 1 1 pcs. Price on request
TCREL 25,4/12,7 YL E05ME-01010304701 1 1 pcs. Price on request
TCREL 38/19 BK E05ME-01010304903 5 5 pcs. Price on request
TCREL 38/19 BL E05ME-01010305001 1 1 pcs. Price on request
TCREL 38/19 RD E05ME-01010305101 1 1 pcs. Price on request
TCREL 38/19 YL E05ME-01010305201 1 1 pcs. Price on request
TCREL 38/19 YL-GR E05ME-01010305301 1 1 pcs. Price on request
TCREL 51/25,5 BK E05ME-01010305403 5 5 pcs. Price on request
TCREL 51/25,5 CL E05ME-01010305501 1 1 pcs. Price on request
TCREL 76/38 BK E05ME-01010305603 5 5 pcs. Price on request
TCREL 12,7/6,4 BK E05ME-01010305803 10 10 pcs. Price on request
TCREL 19/9,5 BK E05ME-01010306303 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Breakdown strength [kV/mm] >15
Material cross-linked polyolefin
Halogen-free yes
Recommended shrinking temperature [°C] 70 ÷ 125
Operating temperature [°C] -55 ÷ +125
Shrinkage factor 2:1
Length [m] 1
Klasa palności VW-1 in accordance with UL224
Name Colour Inside diameter on delivery D [mm] Inside diameter in full shrinkage d [mm] Wall thickness on full shrinkage - s [mm]
TCREL 1,6/0,8 BK black 1,6 0,8 0,33
TCREL 2,4/1,2 BK black 2,4 1,2 0,44
TCREL 2,4/1,2 CL transparent 2,4 1,2 0,44
TCREL 3,2/1,6 BK black 3,2 1,6 0,44
TCREL 4,0/2,0 BK black 4,0 2,0 0,44
TCREL 4,8/2,4 BK black 4,8 2,4 0,5
TCREL 6,4/3,2 BK black 6,4 3,2 0,56
TCREL 8,0/4,0 BK black 8,0 4,0 0,56
TCREL 9,5/4,8 BK black 9,5 4,8 0,56
TCREL 9,5/4,8 BL blue 9,5 4,8 0,56
TCREL 25,4/12,7 BK black 25,4 12,7 0,90
TCREL 25,4/12,7 BL blue 25,4 12,7 0,90
TCREL 25,4/12,7 RD red 25,4 12,7 0,90
TCREL 25,4/12,7 YL yellow 25,4 12,7 0,90
TCREL 38/19 BK black 38,0 19,0 1,1
TCREL 38/19 BL blue 38,0 19,0 1,1
TCREL 38/19 RD red 38,0 19,0 1,1
TCREL 38/19 YL yellow 38,0 19,0 1,1
TCREL 38/19 YL-GR yellow-green 38,0 19,0 1,1
TCREL 51/25,5 BK black 51 25,5 1,15
TCREL 51/25,5 CL transparent 51 25,5 1,15
TCREL 76/38 BK black 76,0 38,0 1,25
TCREL 12,7/6,4 BK black 12,7 6,4 0,68
TCREL 19/9,5 BK black 19,0 9,5 0,78

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Termokurczliwe_cienkoscienne_rury_elastyczne_typu_TCREL_EN.pdf EN 23-07-2025 298.65 KB PDF Download
Catalog card ERGOM_Termokurczliwe_cienkoscienne_rury_elastyczne_typu_TCREL_PL.pdf PL 23-07-2025 298.99 KB PDF Download
