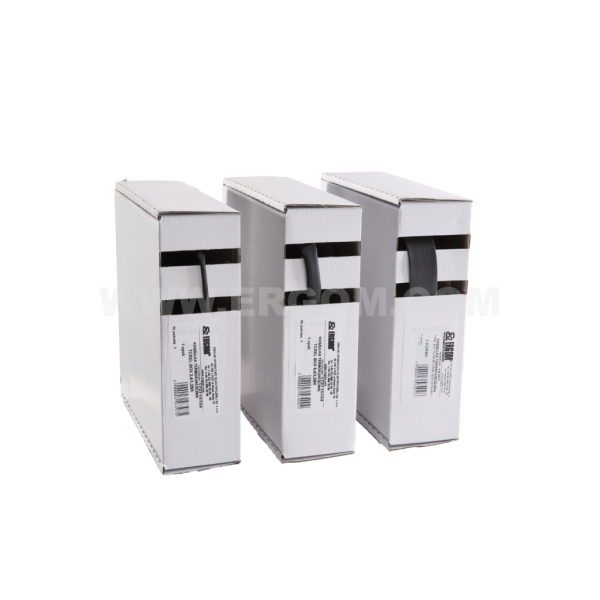

Thin-walled flexible heat shrink tubes in rolls, TCREL BOX type

Thin-walled flexible heat shrink tubes in rolls, TCREL BOX type

Main data of the product series

Product name
Thin-walled flexible heat shrink tubes in rolls, TCREL BOX type
Category
Heat-shrink materials
Operating temperature [°C]
-55 ÷ +125
Recommended shrinking temperature [°C]
70 ÷ 125
Material
cross-linked polyolefin

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
TCREL BOX 1,6/0,8 BK E05ME-01120000101 2 1 pkt. Price on request
TCREL BOX 2,4/1,2 BK E05ME-01120000201 2 1 pkt. Price on request
TCREL BOX 3,2/1,6 BK E05ME-01120000301 2 1 pkt. Price on request
TCREL BOX 4/1 BK E05ME-01120000351 1 1 pkt. Price on request
TCREL BOX 4,8/2,4 BK E05ME-01120000401 2 1 pkt. Price on request
TCREL BOX 6/1,5 BK E05ME-01120000451 1 1 pkt. Price on request
TCREL BOX 6,4/3,2 BK E05ME-01120000501 2 1 pkt. Price on request
TCREL BOX 8/2 BK E05ME-01120000551 1 1 pkt. Price on request
TCREL BOX 9,5/4,8 BK E05ME-01120000601 2 1 pkt. Price on request
TCREL BOX 10/2,5 BK E05ME-01120000651 1 1 pkt. Price on request
TCREL BOX 12/3 BK E05ME-01120000671 1 1 pkt. Price on request
TCREL BOX 12,7/6,4 BK E05ME-01120000701 2 1 pkt. Price on request
TCREL BOX 16/4 BK E05ME-01120000751 1 1 pkt. Price on request
TCREL BOX 19/4,6 BK E05ME-01120000771 1 1 pkt. Price on request
TCREL BOX 19/9,5 BK E05ME-01120000801 1 1 pkt. Price on request
TCREL BOX 25,4/6,5 BK E05ME-01120000851 1 1 pkt. Price on request
TCREL BOX 25,4/12,7 BK E05ME-01120000901 1 1 pkt. Price on request

Selected lines: 0

Technical data

General data

Breakdown strength [kV/mm] >15
Material cross-linked polyolefin
Recommended shrinking temperature [°C] 70 ÷ 125
Operating temperature [°C] -55 ÷ +125
Colour black
Klasa palności VW-1 in accordance with UL224
Name Halogen-free Shrinkage factor Inside diameter on delivery D [mm] Inside diameter in full shrinkage d [mm] Wall thickness on full shrinkage - s [mm] Length [m]
TCREL BOX 1,6/0,8 BK yes 2:1 1,6 0,8 0,33 15
TCREL BOX 2,4/1,2 BK yes 2:1 2,4 1,2 0,44 15
TCREL BOX 3,2/1,6 BK yes 2:1 3,2 1,6 0,44 15
TCREL BOX 4/1 BK no 4:1 4 1 0,75 10
TCREL BOX 4,8/2,4 BK yes 2:1 4,8 2,4 0,50 10
TCREL BOX 6/1,5 BK no 4:1 6 1,5 0,83 8
TCREL BOX 6,4/3,2 BK yes 2:1 6,4 3,2 0,56 10
TCREL BOX 8/2 BK no 4:1 8 2 0,95 8
TCREL BOX 9,5/4,8 BK yes 2:1 9,5 4,8 0,56 10
TCREL BOX 10/2,5 BK no 4:1 10 2,5 1,08 8
TCREL BOX 12/3 BK no 4:1 12 3 1,1 8
TCREL BOX 12,7/6,4 BK yes 2:1 12,7 6,4 0,68 8
TCREL BOX 16/4 BK no 4:1 16 4 1,1 8
TCREL BOX 19/4,6 BK no 4:1 19 4,6 1,4 6
TCREL BOX 19/9,5 BK yes 2:1 19 9,5 0,78 7
TCREL BOX 25,4/6,5 BK no 4:1 25,4 6,5 1,35 6
TCREL BOX 25,4/12,7 BK yes 2:1 25,4 12,7 0,90 4

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Termokurczliwe_cienkoscienne_rury_elastyczne_typu_TCREL_BOX_EN.pdf EN 14-05-2025 290.75 KB PDF Download
Catalog card ERGOM_Termokurczliwe_cienkoscienne_rury_elastyczne_typu_TCREL_BOX_PL.pdf PL 14-05-2025 285.19 KB PDF Download
