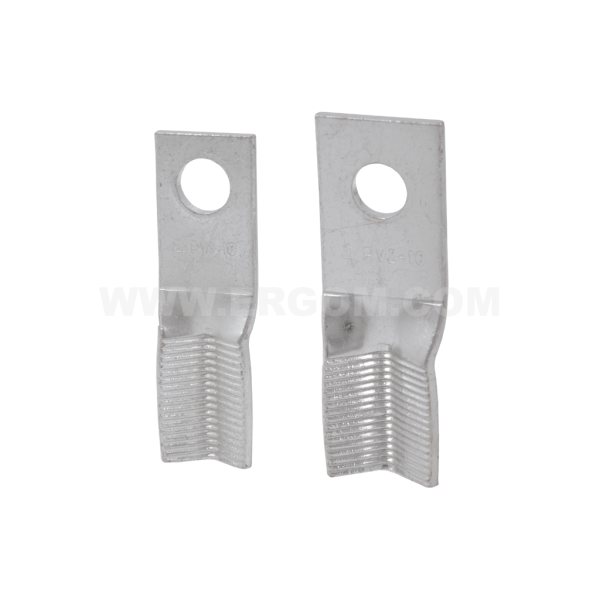

Terminal plates, PV type

Terminal plates, PV type

Main data of the product series

Product name
Terminal plates, PV type
Category
V-clamps
Material
galvanised copper
Standards
EN 60947-7-1 (IEC 60947-7-1)

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
PV 1/8 R32RZ-03020100102 12 12 pcs. Price on request
PV 1/10 R32RZ-03020100202 12 12 pcs. Price on request
PV 2/8 R32RZ-03020200102 12 12 pcs. Price on request
PV 2/10 R32RZ-03020200202 12 12 pcs. Price on request
PV 2/12 R32RZ-03020200302 12 12 pcs. Price on request
PV 3/8 R32RZ-03020300102 12 12 pcs. Price on request
PV 3/10 R32RZ-03020300302 12 12 pcs. Price on request
PV 3/12 R32RZ-03020300402 12 12 pcs. Price on request

Selected lines: 0

Technical data

General data

Material galvanised copper
Normy EN 60947-7-1 (IEC 60947-7-1)
Name Clamp type Cross-section [mm²] Imax (35°C) (DIN 43670) [A] A B d s
PV 1/8 V 120 60 237 65 20 8,5 3
PV 1/10 V 120 60 237 65 20 10,5 3
PV 2/8 VN 300 (16-300) 75 287 72 25 8,5 3
PV 2/10 VN 300 (16-300) 75 287 72 25 10,5 3
PV 2/12 VN 300 (16-300) 75 287 72 25 13 3
PV 3/8 VN 300 (16-300) 100 319 72 25 8,5 4
PV 3/10 VN 300 (16-300) 100 319 72 25 10,5 4
PV 3/12 VN 300 (16-300) 100 319 72 25 13 4

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Plytki_zaciskowe_typ_PV_EN.pdf EN 15-05-2025 227.92 KB PDF Download
Catalog card ERGOM_Plytki_zaciskowe_typ_PV_PL.pdf PL 15-05-2025 241.9 KB PDF Download
