Tapes in roll, TSR 304, 316 type

Tapes in roll, TSR 304, 316 type

Main data of the product series

Product name
Tapes in roll, TSR 304, 316 type
Category
TS stainless steel
Operating temperature [°C]
-80 ÷ +540
Material
TSR 304 stainless steel 304 type acc. to AISI/ASTM standards
Note!

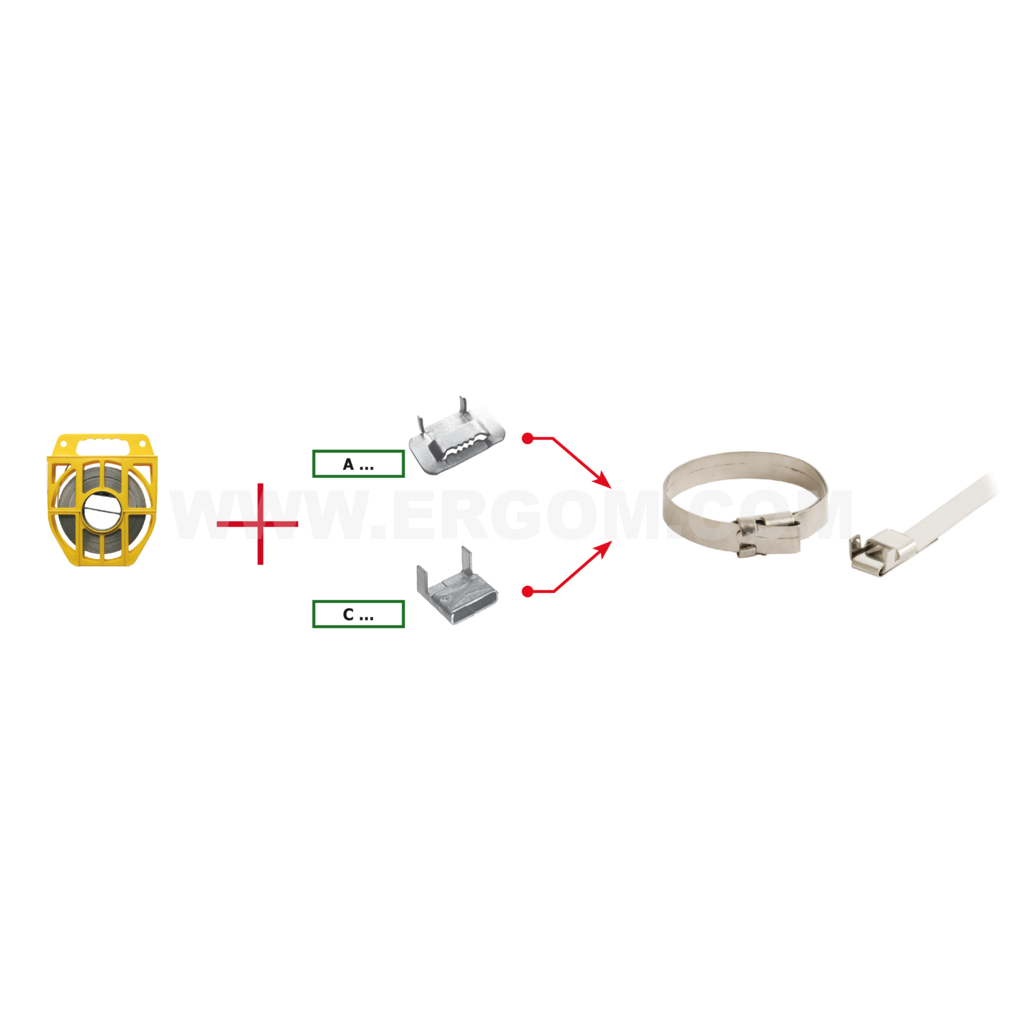

The TSR ties have no integrated buckling head. The locks for the TSR ties are delivered separately.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
TSR 304/6 E01TK-04010100103 1 31 pkt. Price on request
TSR 304/9 E01TK-04010100203 1 31 pkt. Price on request
TSR 304/12 E01TK-04010100303 1 31 pkt. Price on request
TSR 304/15 E01TK-04010100403 1 31 pkt. Price on request
TSR 304/19 E01TK-04010100503 1 31 pkt. Price on request
TSR 316 30/9 E01TK-04010100703 1 31 pkt. Price on request

Selected lines: 0

Technical data

General data

Material TSR 304 stainless steel 304 type acc. to AISI/ASTM standards
Halogen-free yes
Operating temperature [°C] -80 ÷ +540
Length [m] 30,5
Normy EN IEC 62275:2019
Name S W
TSR 304/6 0,51 6,35
TSR 304/9 0,63 9,53
TSR 304/12 0,76 12,70
TSR 304/15 0,76 15,88
TSR 304/19 0,76 19,05
TSR 316 30/9 0,63 9,53

Guide

Tapes in roll, TSR 304, 316 type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Tasmy_w_rolce_typu_TSR_304_316_EN.pdf EN 30-05-2025 266.09 KB PDF Download
Catalog card ERGOM_Tasmy_w_rolce_typu_TSR_304_316_PL.pdf PL 30-05-2025 274.18 KB PDF Download
