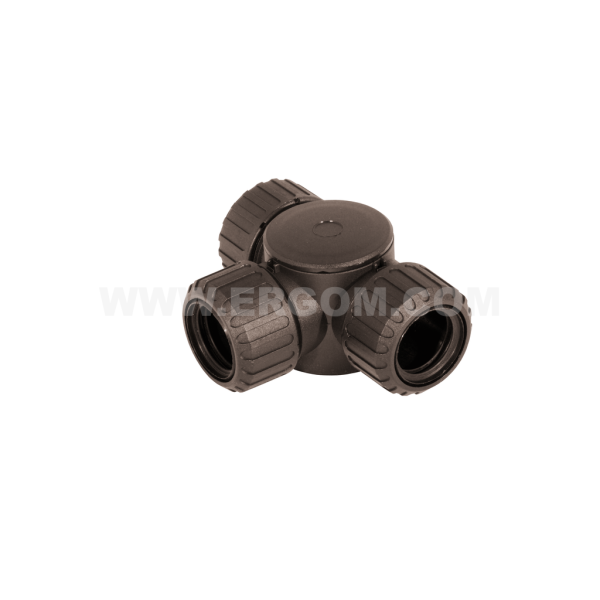

T-connection LT type

T-connection LT type

Main data of the product series

Product name
T-connection LT type
Category
Accessories for corrugated conduits made of polyamide
Operating temperature [°C]
-40 ÷ +120
Material
polyamide 6.6
Colour
black
IP degree of protection
IP67
Note!
Conduit external diameters in mm, corresponding to the A, B, C dimensions acc. to the PG, are given in the table at the LRS conduit-and-box connection.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
LT 7 E03DK-07010400101 10 10 pcs. Price on request
LT 9 E03DK-07010400201 10 10 pcs. Price on request
LT 11 E03DK-07010400301 10 10 pcs. Price on request
LT 16 E03DK-07010400401 10 10 pcs. Price on request
LT 21 E03DK-07010400501 10 10 pcs. Price on request
LT 29 E03DK-07010400601 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6.6
Halogen-free yes
Operating temperature [°C] -40 ÷ +120
Colour black
Stopień ochrony IP67
Name Tube type A Tube type B Tube type C D L H
LT 7 WTE 7 WTE 7 WTE 7 23 68 50
LT 9 WTE 9 WTE 9 WTE 9 23 65 50
LT 11 WTE 11 WTE 11 WTE 11 26 70 47
LT 16 WTE 16 WTE 16 WTE 16 31 77 55
LT 21 WTE 21 WTE 21 WTE 21 39 90 70
LT 29 WTE 29 WTE 29 WTE 29 46 109 84

Guide

T-connection LT type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Lacznik_–_trojnik_typu_LT_EN.pdf EN 14-05-2025 249.69 KB PDF Download
Catalog card ERGOM_Lacznik_–_trojnik_typu_LT_PL.pdf PL 14-05-2025 260.17 KB PDF Download
