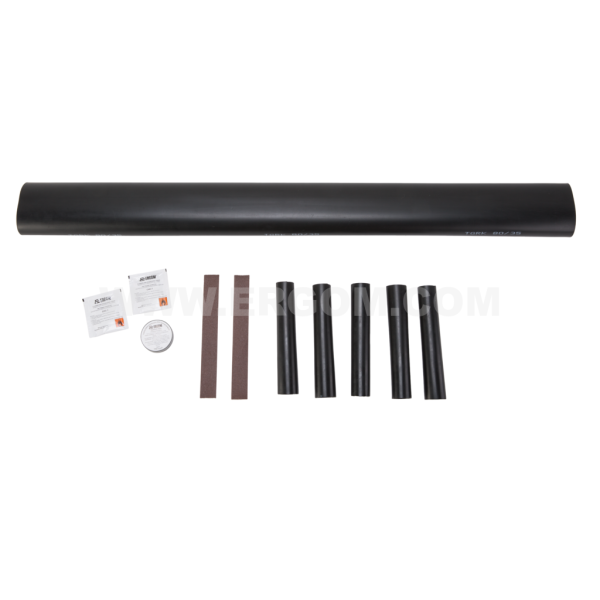

Straight through joints 0.6/1 kV (without connectors), JE type

Straight through joints 0.6/1 kV (without connectors), JE type

Main data of the product series

Product name
Straight through joints 0.6/1 kV (without connectors), JE type
Category
Heat-shrink materials
Recommended shrinking temperature [°C]
100 ÷ 125
Operating temperature [°C]
-25 ÷ +105

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
JE-4 2,5-10 E05ME-01100300050 3 1 set Price on request
JE-4 16-25 E05ME-01100300100 3 1 set Price on request
JE-4 35-70 E05ME-01100300200 3 1 set Price on request
JE-4 95 E05ME-01100300300 3 1 set Price on request
JE-4 120-150 E05ME-01100300400 3 1 set Price on request
JE-4 185-240 E05ME-01100300500 3 1 set Price on request
JE-5 16-25 E05ME-01100400100 3 1 set Price on request
JE-5 35-70 E05ME-01100400200 3 1 set Price on request
JE-5 95 E05ME-01100400300 3 1 set Price on request
JE-5 120-150 E05ME-01100400400 3 1 set Price on request
JE-5 185-240 E05ME-01100400500 3 1 set Price on request

Selected lines: 0

Technical data

General data

Halogen-free yes
UV Resistance yes
Recommended shrinking temperature [°C] 100 ÷ 125
Operating temperature [°C] -25 ÷ +105
PVC tape up to 1 kV [pcs] 1
Abrasive cloth, 250 x 30 mm [pcs] 2
Cleaning wipe, CHC-1 [pcs] 2
Name Tube for repearing external cable insulation [tube type, length, quantity] Tube for repearing single core insulation [tube type, length, quantity] Cable conductor cross-section Application
JE-4 2,5-10 TGRK 32/12, 330 / 1 TGRK 9/3, 330 / 4 2,5 ÷ 10 Set for 4-core cables
JE-4 16-25 TGRK 40/16, 500 / 1 TGRK 18/6, 125 / 4 16 ÷ 25 Set for 4-core cables
JE-4 35-70 TGRK 52/20, 600 / 1 TGRK 25/10, 165 / 4 35 ÷ 70 Set for 4-core cables
JE-4 95 TGRK 63/27, 800 / 1 TGRK 25/10, 200 / 4 95 Set for 4-core cables
JE-4 120-150 TGRK 80/35, 800 / 1 TGRK 32/12, 200 / 4 120 ÷ 150 Set for 4-core cables
JE-4 185-240 TGRK 103/35, 1000 / 1 TGRK 40/16, 250 / 4 185 ÷ 240 Set for 4-core cables
JE-5 16-25 TGRK 52/20, 500 / 1 TGRK 18/6, 125 / 5 16 ÷ 25 Set for 5-core cables
JE-5 35-70 TGRK 63/27, 600 / 1 TGRK 25/10, 165 / 5 35 ÷ 70 Set for 5-core cables
JE-5 95 TGRK 80/35, 800 / 1 TGRK 25/10, 200 / 5 95 Set for 5-core cables
JE-5 120-150 TGRK 80/35, 800 / 1 TGRK 32/12, 200 / 5 120 ÷ 150 Set for 5-core cables
JE-5 185-240 TGRK 103/35, 1000 / 1 TGRK 40/16, 250 / 5 185 ÷ 240 Set for 5-core cables

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Mufy_kablowe_przelotowe_0_6_1_kV_bez_zlaczek_typu_JE_EN.pdf EN 14-05-2025 232.28 KB PDF Download
Catalog card ERGOM_Mufy_kablowe_przelotowe_0_6_1_kV_bez_zlaczek_typu_JE_PL.pdf PL 14-05-2025 275.32 KB PDF Download
