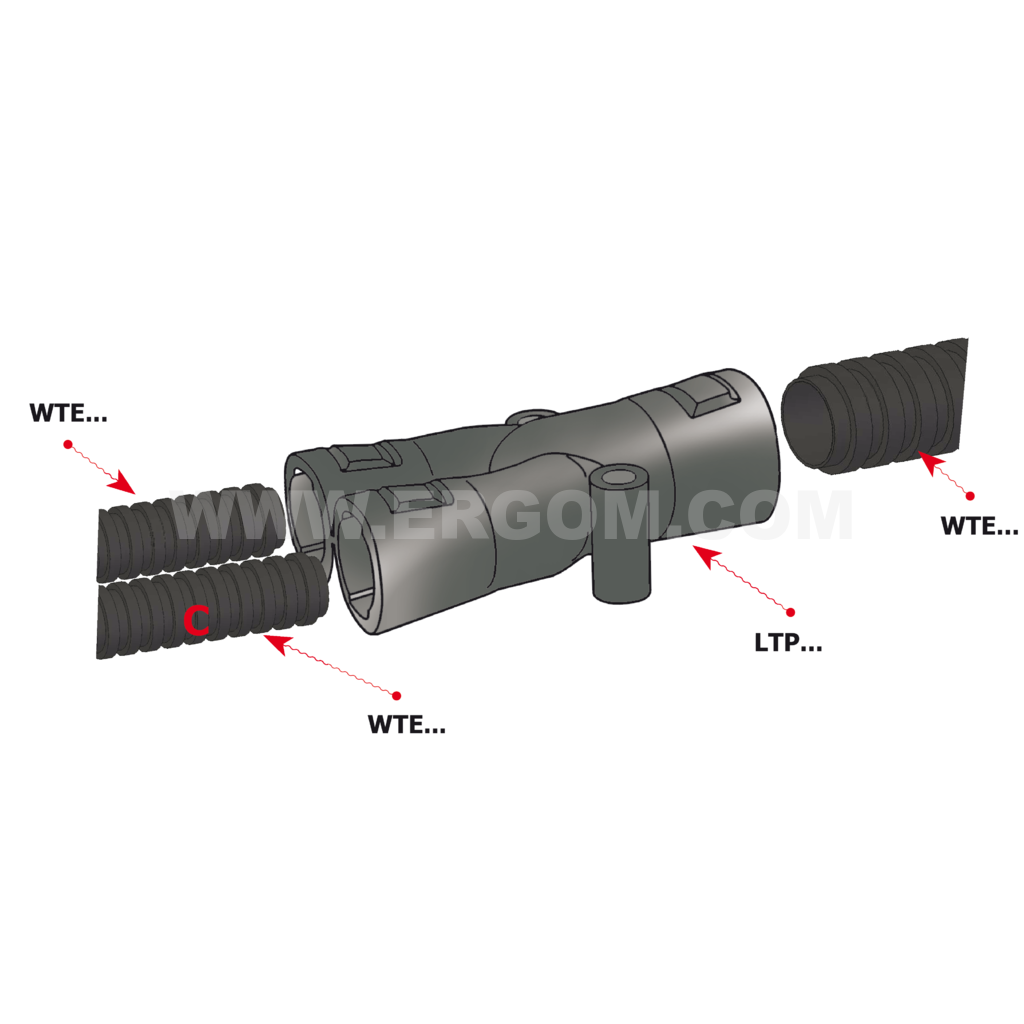

Straight T-connection, LTP IP66 type

Straight T-connection, LTP IP66 type

Main data of the product series

Product name
Straight T-connection, LTP IP66 type
Category
Accessories for corrugated conduits made of polyamide
Operating temperature [°C]
-40 ÷ +120
Material
polyamide 6.6
Colour
black
IP degree of protection
IP66
Note!
Conduit external diameters in mm, corresponding to the A, B, C dimensions acc. to the PG, are given in the table at the LRS conduit-and-box connection.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
LTP 9/7/7 E03DK-07010700101 10 10 pcs. Price on request
LTP 11/9/9 E03DK-07010700201 10 10 pcs. Price on request
LTP 16/11/11 E03DK-07010700301 10 10 pcs. Price on request
LTP 21/16/16 E03DK-07010700401 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6.6
Halogen-free yes
Operating temperature [°C] -40 ÷ +120
Colour black
Stopień ochrony IP66
Name Tube type A Tube type B Tube type C d L E H E1
LTP 9/7/7 WTE 9 WTE 7 WTE 7 5 69,3 21 28,2 32,7
LTP 11/9/9 WTE 11 WTE 9 WTE 9 5 80,2 24 36,8 34.4
LTP 16/11/11 WTE 16 WTE 11 WTE 11 6 82,8 32 42,8 35,7
LTP 21/16/16 WTE 21 WTE 16 WTE 16 7 90,5 42 54,0 38,3

Guide

Straight T-connection, LTP IP66 type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Lacznik_trojnik_prosty_typu_LTP_IP66_EN.pdf EN 14-05-2025 270.51 KB PDF Download
Catalog card ERGOM_Lacznik_trojnik_prosty_typu_LTP_IP66_PL.pdf PL 14-05-2025 279.68 KB PDF Download
