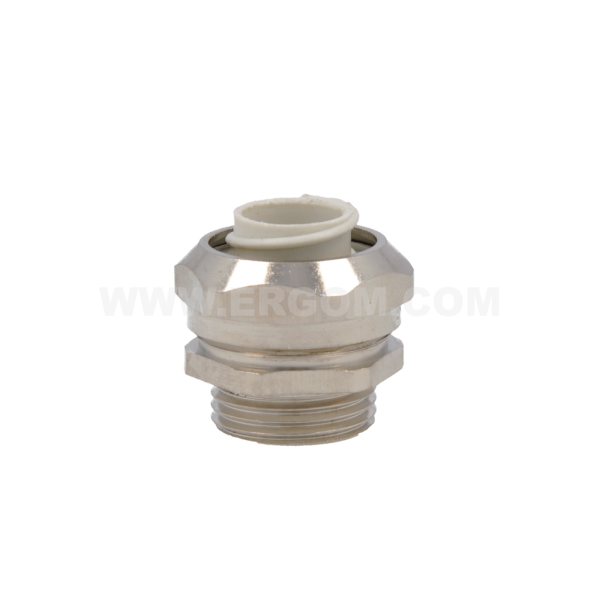

Steel fitting for protective conduits, MWO...S type

Steel fitting for protective conduits, MWO...S type

Main data of the product series

Product name: Steel fitting for protective conduits, MWO...S type
Category: Accessories for steel conduits
Material: staineless steel+ polyethylene insert
Operating temperature [°C]: -30 ÷ +80
IP degree of protection: IP66
Note!: MDN...ST and UUPE seals have to be ordered separately.

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
MWO 7S	E03DK-08020100103	1	1	pcs.	Price on request
MWO 9S	E03DK-08020100203	1	1	pcs.	Price on request
MWO 11S	E03DK-08020100303	1	1	pcs.	Price on request
MWO 13S	E03DK-08020100403	1	1	pcs.	Price on request
MWO 16S	E03DK-08020100503	1	1	pcs.	Price on request
MWO 21S	E03DK-08020100603	1	1	pcs.	Price on request
MWO 29S	E03DK-08020100703	1	1	pcs.	Price on request
MWO 36S	E03DK-08020100803	1	1	pcs.	Price on request
MWO 48S NFC	E03DK-08020100903	1	1	pcs.	Price on request

Selected lines: 0

Technical data

General data

Material	staineless steel+ polyethylene insert
Halogen-free	yes
Operating temperature [°C]	-30 ÷ +80
Stopień ochrony	IP66

Name	PG thread	For spanner A	For spanner B	L	C	E
MWO 7S	PG7	19	17	10,0	7,5	6
MWO 9S	PG9	22	20	12,5	9,2	6
MWO 11S	PG11	27	24	13,0	11,9	7
MWO 13S	PG13,5	29	26	13,0	13,6	7
MWO 16S	PG16	30	30	16,5	15,3	8
MWO 21S	PG21	36	36	21,0	20,2	8
MWO 29S	PG29	47	45	19,5	26,7	8
MWO 36S	PG36	60	56	26,5	34,6	10
MWO 48S NFC	PG48 NFC	74	70	33,0	45,3	10

Guide

Steel fitting for protective conduits, MWO...S type

Steel fitting for protective conduits, MWO...S type

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Lacznik_rury_stalowy_do_rur_ochronnych_typu_MWO_S_EN.pdf	EN	14-05-2025	268.8 KB	PDF	Download
Catalog card	ERGOM_Lacznik_rury_stalowy_do_rur_ochronnych_typu_MWO_S_PL.pdf	PL	14-05-2025	268.04 KB	PDF	Download
