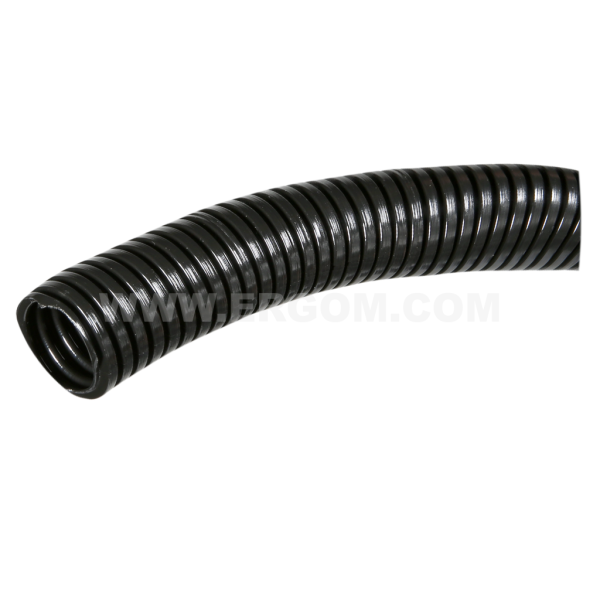

Standard corrugated protective conduit made of polyamide, WTE type

Standard corrugated protective conduit made of polyamide, WTE type

Main data of the product series

Product name
Standard corrugated protective conduit made of polyamide, WTE type
Category
Corrugated conduits made of polyamide
Compression strength
2 - 320 N *
Material
polyamide 6
Colour
black (RAL 9005)
Operating temperature [°C]
-5 ÷ +90
IP degree of protection
IP67
Flammability class
UL 94 HB

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
WTE 7 E03DK-09070100100 50 50 m. Price on request
WTE 9 E03DK-09070100200 50 50 m. Price on request
WTE 11 E03DK-09070100300 50 50 m. Price on request
WTE 13 E03DK-09070100400 50 50 m. Price on request
WTE 16 E03DK-09070100500 50 50 m. Price on request
WTE 21 E03DK-09070100600 50 50 m. Price on request
WTE 29 E03DK-09070100700 50 50 m. Price on request
WTE 36 E03DK-09070100800 25 25 m. Price on request
WTE 48 E03DK-09070100900 25 25 m. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6
Halogen-free yes
Operating temperature [°C] -5 ÷ +90
Colour black (RAL 9005)
Resistance to flame propagating 1- non-flame propagating material *
Compression strength 2 - 320 N *
Impact resistance 4 - high impact resistance *
High temperature resistance 3- medium compressive strength *
UV resistance yes
Stopień ochrony IP67
Klasa palności UL 94 HB
Normy EN 61386-1; EN 61386-23; EN ISO 4892-3
Name Min. bending radius [mm] Nominal size of the connector d D
WTE 7 25 7 6,5 10,0
WTE 9 30 9 9,6 13,0
WTE 11 35 11 11,6 15,8
WTE 13 40 13 14,0 18,6
WTE 16 45 16 16,5 21,2
WTE 21 50 21 21,7 28,5
WTE 29 63 29 27,7 34,5
WTE 36 85 36 35,2 42,5
WTE 48 100 48 46,5 54,5

Guide

Standard corrugated protective conduit made of polyamide, WTE type
Standard corrugated protective conduit made of polyamide, WTE type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Rura_ochronna_karbowana_wykonana_z_poliamidu_–_standard_typu_WTE_EN.pdf EN 31-07-2025 406.21 KB PDF Download
Catalog card ERGOM_Rura_ochronna_karbowana_wykonana_z_poliamidu_–_standard_typu_WTE_PL.pdf PL 31-07-2025 403.05 KB PDF Download
