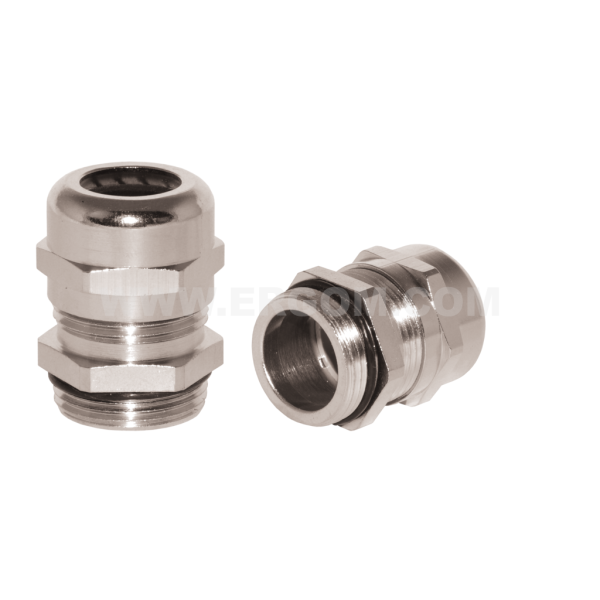

Stainless steel glands SDW…H-303, SDW…HM-303 type

Stainless steel glands SDW…H-303, SDW…HM-303 type

Main data of the product series

Product name: Stainless steel glands SDW…H-303, SDW…HM-303 type
Category: Metal
Operating temperature [°C]: -40 ÷ +100
Material: body: stainless steel 303 acc. to AISI (1.4305 acc. to DIN); seal: CR rubber; clamping insert: PA6; o-ring: NBR rubber
IP degree of protection: IP68
Note!: MDN...ST nuts have to be ordered separately.

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
SDW 7H-303	E03DK-03090001003	1	1	pcs.	Price on request
SDW 9H-303	E03DK-03090001103	1	1	pcs.	Price on request
SDW 11H-303	E03DK-03090001203	1	1	pcs.	Price on request
SDW 13H-303	E03DK-03090001303	1	1	pcs.	Price on request
SDW 16H-303	E03DK-03090001403	1	1	pcs.	Price on request
SDW 21H-303	E03DK-03090001503	1	1	pcs.	Price on request
SDW 29H-303	E03DK-03090001603	1	1	pcs.	Price on request
SDW 36H-303	E03DK-03090001703	1	1	pcs.	Price on request
SDW 42H-303	E03DK-03090001801	1	1	pcs.	Price on request
SDW 48H-303	E03DK-03090001901	1	1	pcs.	Price on request
SDW 12HM-303	E03DK-03090002103	1	1	pcs.	Price on request
SDW 16HM-303	E03DK-03090002203	1	1	pcs.	Price on request
SDW 20HM-303	E03DK-03090002303	1	1	pcs.	Price on request
SDW 25HM-303	E03DK-03090002403	1	1	pcs.	Price on request
SDW 32HM-303	E03DK-03090002503	1	1	pcs.	Price on request
SDW 40HM-303	E03DK-03090002601	1	1	pcs.	Price on request
SDW 50HM-303	E03DK-03090002701	1	1	pcs.	Price on request
SDW 63HM-303	E03DK-03090002801	1	1	pcs.	Price on request

Selected lines: 0

Technical data

General data

Material	body: stainless steel 303 acc. to AISI (1.4305 acc. to DIN); seal: CR rubber; clamping insert: PA6; o-ring: NBR rubber
Operating temperature [°C]	-40 ÷ +100
Stopień ochrony	IP68
Normy	EN 62444; type A

Name	M thread	PG thread	Cable external diameter [mm]	E	L	For spanner A	For spanner B
SDW 7H-303	-	PG7	3÷6,5	6,0	22,0	14,00	14,00
SDW 9H-303	-	PG9	4÷8	6,0	23,0	17,00	19,00
SDW 11H-303	-	PG11	5÷10	6,0	25,5	22,00	22,00
SDW 13H-303	-	PG13,5	6÷12	6,5	24,0	22,00	22,00
SDW 16H-303	-	PG16	10÷14	6,5	27,5	24,00	24,00
SDW 21H-303	-	PG21	13÷18	7,5	32,5	30,00	30,00
SDW 29H-303	-	PG29	18÷25	8,0	38,5	41,00	41,00
SDW 36H-303	-	PG36	22÷32	9,0	46,0	50,00	50,00
SDW 42H-303	-	PG42	30÷38	12,0	48,0	60,00	60,00
SDW 48H-303	-	PG48	34÷44	14,0	49,5	65,00	65,00
SDW 12HM-303	M12x1,5	-	3÷6,5	6,0	22,0	14,00	14,00
SDW 16HM-303	M16x1,5	-	4÷8	7,0	23,0	17,00	18,00
SDW 20HM-303	M20x1,5	-	6÷12	8,0	24,0	22,00	22,00
SDW 25HM-303	M25x1,5	-	10÷14	8,0	27,5	24,00	27,00
SDW 32HM-303	M32x1,5	-	13÷18	9,0	32,5	30,00	36,00
SDW 40HM-303	M40x1,5	-	18÷25	9,0	40,5	40,00	43,00
SDW 50HM-303	M50x1,5	-	22÷32	9,0	47,0	50,00	55,00
SDW 63HM-303	M63x1,5	-	34÷44	14,0	53,0	64,94	69,92

Guide

No data

Knowledge

No data
