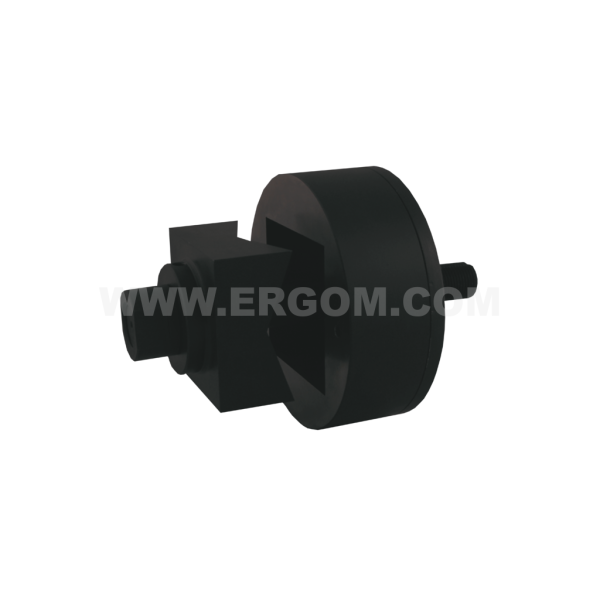

Square and rectangular punching dies, SY...

Square and rectangular punching dies, SY...

Main data of the product series

Product name
Square and rectangular punching dies, SY...
Category
Punching dies for hydraulic punching tools
Note!
Punching dies SY - sold with MOLYKOTE 1000 thread paste. Other sizes available on request.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
SY1-30-Wycinak kwadratowy E06WD-01060200300 1 1 pcs. Price on request
SY1-45-Wycinak kwadratowy E06WD-01060200400 1 1 pcs. Price on request
SY2-45x92-Wycinak prostokątny E06WD-01060200500 1 1 pcs. Price on request
SY1-54-Wycinak kwadratowy E06WD-01060200600 1 1 pcs. Price on request
SY1-68-Wycinak kwadratowy E06WD-01060200700 1 1 pcs. Price on request
SY2-92-Wycinak kwadratowy E06WD-01060200900 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Central hole diameter [mm] 20,5÷21
Name Draw mandrel A B
SY1-30-Wycinak kwadratowy 3/4’’ / M20x1,5-145 30 30
SY1-45-Wycinak kwadratowy 3/4’’ / M20x1,5-145 45 45
SY2-45x92-Wycinak prostokątny 3/4’’ / M20x1,5-165 45 92
SY1-54-Wycinak kwadratowy 3/4’’ / M20x1,5-145 54 54
SY1-68-Wycinak kwadratowy 3/4’’ / M20x1,5-165 68 68
SY2-92-Wycinak kwadratowy 3/4’’ / M20x1,5-165 92 92

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Wycinaki_kwadratowe_i_prostokatne_SY_EN.pdf EN 14-05-2025 145.7 KB PDF Download
Catalog card ERGOM_Wycinaki_kwadratowe_i_prostokatne_SY_PL.pdf PL 14-05-2025 187.9 KB PDF Download
