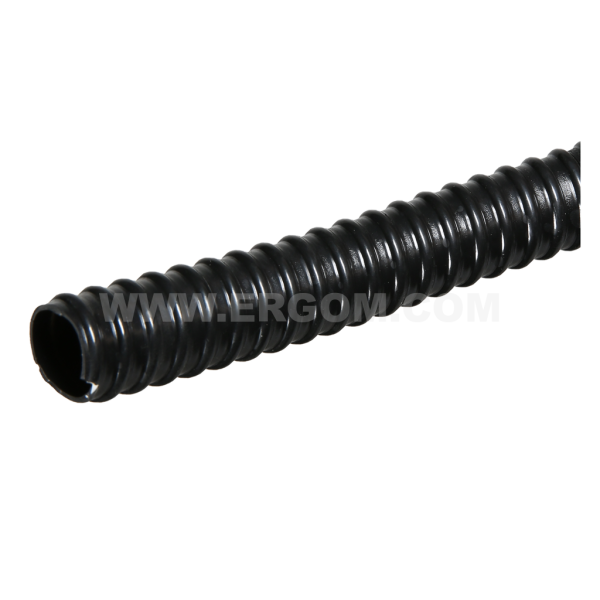

Spiral protective conduit made from PVC, WTG type

Spiral protective conduit made from PVC, WTG type

Main data of the product series

Product name
Spiral protective conduit made from PVC, WTG type
Category
PVC conduits
Compression strength
320 N
Operating temperature [°C]
-5 ÷ +60 (without moving: -20 ÷ +60)
IP degree of protection
IP66

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
WTG 7 E03DK-09030100101 30 30 m. Price on request
WTG 9 E03DK-09030100201 30 30 m. Price on request
WTG 11 E03DK-09030100301 30 30 m. Price on request
WTG 13 E03DK-09030100401 30 30 m. Price on request
WTG 16/25M E03DK-09030100501 25 25 m. Price on request
WTG 20 E03DK-09030100551 30 30 m. Price on request
WTG 21 E03DK-09030100601 30 30 m. Price on request
WTG 25 E03DK-09030100651 30 30 m. Price on request
WTG 29 E03DK-09030100701 30 30 m. Price on request
WTG 32 E03DK-09030100751 30 30 m. Price on request
WTG 36 E03DK-09030100801 30 30 m. Price on request
WTG 48 E03DK-09030100901 30 30 m. Price on request
WTG 21 GY E03DK-09030200601 30 30 m. Price on request
WTG 48 GY E03DK-09030200901 30 30 m. Price on request

Selected lines: 0

Technical data

General data

Operating temperature [°C] -5 ÷ +60 (without moving: -20 ÷ +60)
Compression strength 320 N
Stopień ochrony IP66
Klasa palności EN 61386-1 pt. 6.5.1 - flame retardant
Normy EN 61386-1; EN 61386-23
Name Colour Min. bending radius [mm] Nominal size of the connector d D
WTG 7 black (RAL 9005) 25 7 10 14,7
WTG 9 black (RAL 9005) 36 9 12 16,4
WTG 11 black (RAL 9005) 35 11 14 18,9
WTG 13 black (RAL 9005) 40 13 16 20,7
WTG 16/25M black (RAL 9005) 45 16 18 22,5
WTG 20 black (RAL 9005) 48 20 20 24,7
WTG 21 black (RAL 9005) 50 21 22 27,7
WTG 25 black (RAL 9005) 56 25 25 30,6
WTG 29 black (RAL 9005) 63 29 28 33,5
WTG 32 black (RAL 9005) 70 32 32 38
WTG 36 black (RAL 9005) 85 36 40 46,4
WTG 48 black (RAL 9005) 100 48 50 57,2
WTG 21 GY grey (RAL 7035) 50 21 22 27,7
WTG 48 GY grey (RAL 7035) 100 48 50 57,2

Guide

Spiral protective conduit made from PVC, WTG type
Spiral protective conduit made from PVC, WTG type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Rura_ochronna_spiralna_typu_WTG_wykonana_z_PCV_EN.pdf EN 14-05-2025 352.43 KB PDF Download
Catalog card ERGOM_Rura_ochronna_spiralna_typu_WTG_wykonana_z_PCV_PL.pdf PL 14-05-2025 367.8 KB PDF Download
