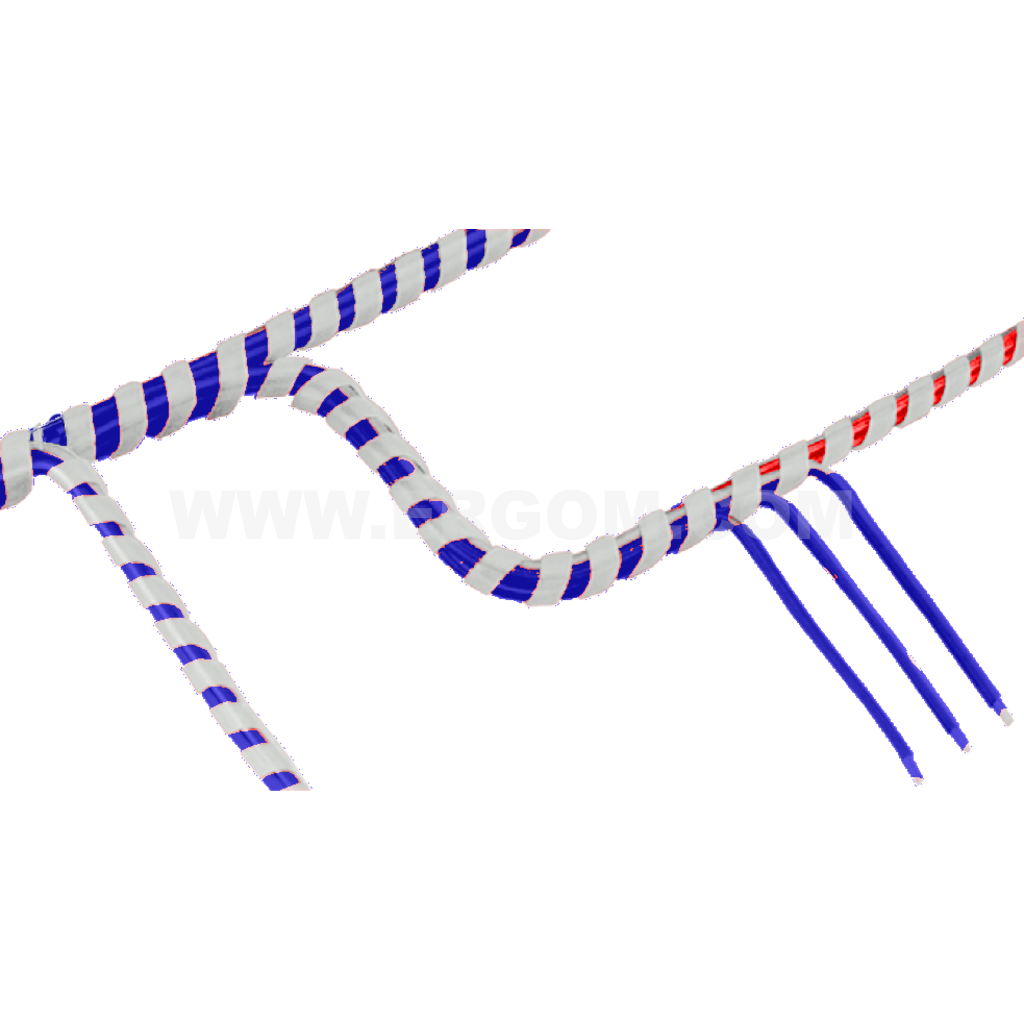

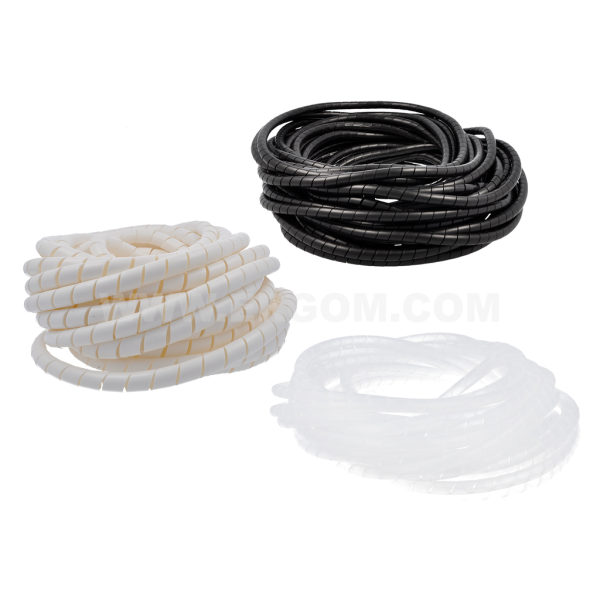

Spiral hose, WSN type

Main data of the product series

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom
WSN 3	E01WS-01010100100	2	10	pkt.	Price on request
WSN 6	E01WS-01010100250	2	10	pkt.	Price on request
WSN 8	E01WS-01010100300	2	10	pkt.	Price on request
WSN 10	E01WS-01010100400	2	10	pkt.	Price on request
WSN 12	E01WS-01010100500	2	10	pkt.	Price on request
WSN 15	E01WS-01010100600	1	10	pkt.	Price on request
WSN 19	E01WS-01010100700	1	10	pkt.	Price on request
WSN 24	E01WS-01010100800	1	10	pkt.	Price on request
WSN 3 S	E01WS-01010200100	2	10	pkt.	Price on request
WSN 6 S	E01WS-01010200200	2	10	pkt.	Price on request
WSN 8 S	E01WS-01010200300	2	10	pkt.	Price on request
WSN 10 S	E01WS-01010200400	2	10	pkt.	Price on request
WSN 12 S	E01WS-01010200500	2	10	pkt.	Price on request
WSN 15 S	E01WS-01010200600	1	10	pkt.	Price on request
WSN 19 S	E01WS-01010200700	1	10	pkt.	Price on request
WSN 24 S	E01WS-01010200800	1	10	pkt.	Price on request
WSN 3 V2	E01WS-01010300100	1	10	pkt.	Price on request
WSN 6 V2	E01WS-01010300200	1	10	pkt.	Price on request
WSN 8 V2	E01WS-01010300300	1	10	pkt.	Price on request
WSN 10 V2	E01WS-01010300400	1	10	pkt.	Price on request
WSN 12 V2	E01WS-01010300500	1	10	pkt.	Price on request
WSN 15 V2	E01WS-01010300600	1	10	pkt.	Price on request
WSN 19 V2	E01WS-01010300700	1	10	pkt.	Price on request
WSN 24 V2	E01WS-01010300800	1	10	pkt.	Price on request

Selected lines: 0

Halogen-free	yes
Operating temperature [°C]	-30 ÷ +70

Name	Material	Colour	Bundle dia. [mm]	D	S	T
WSN 3	polyethylene; UL 94 HB	transparent	3÷10	3	5	0,75
WSN 6	polyethylene; UL 94 HB	transparent	6÷18	6	7	-
WSN 8	polyethylene; UL 94 HB	transparent	8÷24	8	11	-
WSN 10	polyethylene; UL 94 HB	transparent	10÷32	10	12	-
WSN 12	polyethylene; UL 94 HB	transparent	12÷40	12	14	1,5
WSN 15	polyethylene; UL 94 HB	transparent	15÷50	15	15	1,5
WSN 19	polyethylene; UL 94 HB	transparent	19÷65	19	18	2
WSN 24	polyethylene; UL 94 HB	transparent	24÷80	24	20	2
WSN 3 S	polyethylene; UL 94 HB	black	3÷10	3	5	0,75
WSN 6 S	polyethylene; UL 94 HB	black	6÷18	6	7	-
WSN 8 S	polyethylene; UL 94 HB	black	8÷24	8	11	-
WSN 10 S	polyethylene; UL 94 HB	black	10÷32	10	12	-
WSN 12 S	polyethylene; UL 94 HB	black	12÷40	12	14	1,5
WSN 15 S	polyethylene; UL 94 HB	black	15÷50	15	15	1,5
WSN 19 S	polyethylene; UL 94 HB	black	19÷65	19	18	2
WSN 24 S	polyethylene; UL 94 HB	black	24÷80	24	20	2
WSN 3 V2	self-extinguishing polyethylene; UL 94 V2	white	3÷10	3	5	0,75
WSN 6 V2	self-extinguishing polyethylene; UL 94 V2	white	6÷18	6	7	-
WSN 8 V2	self-extinguishing polyethylene; UL 94 V2	white	8÷24	8	11	-
WSN 10 V2	self-extinguishing polyethylene; UL 94 V2	white	10÷32	10	12	-
WSN 12 V2	self-extinguishing polyethylene; UL 94 V2	white	12÷40	12	14	1,5
WSN 15 V2	self-extinguishing polyethylene; UL 94 V2	white	15÷50	15	15	1,5
WSN 19 V2	self-extinguishing polyethylene; UL 94 V2	white	19÷65	19	18	2
WSN 24 V2	self-extinguishing polyethylene; UL 94 V2	white	24÷80	24	20	2

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Wezyk_spiralny_typu_WSN_EN.pdf	EN	14-05-2025	285.03 KB	PDF	Download
Catalog card	ERGOM_Wezyk_spiralny_typu_WSN_PL.pdf	PL	14-05-2025	327.04 KB	PDF	Download
