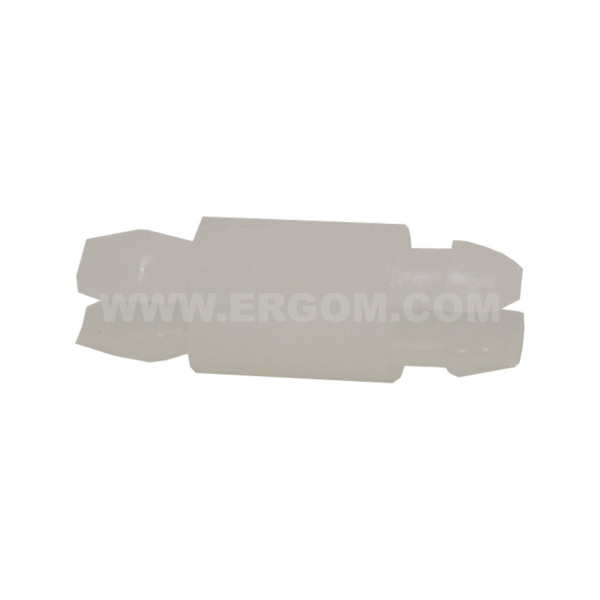

Spacing elements, P 4 type

Spacing elements, P 4 type

Main data of the product series

Product name
Spacing elements, P 4 type
Category
Not mating with cable ties
Material
polyamide 6.6
Operating temperature [°C]
-30 ÷ +85
Flammability class
UL 94 V2

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
P 4/6 E01EM-01080300101 2 100 pkt. Price on request
P 4/9 E01EM-01080300201 1 100 pkt. Price on request
P 4/10 E01EM-01080300301 1 100 pkt. Price on request
P 4/12 E01EM-01080300401 1 100 pkt. Price on request
P 4/19 E01EM-01080300501 2 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6.6
Halogen-free yes
Installation used for fastening printed circuit boards by latching in Ø4 holes; thickness of the boards up to 1.6 mm.
Operating temperature [°C] -30 ÷ +85
Colour white
B 3,5
Klasa palności UL 94 V2
Name A
P 4/6 6,5
P 4/9 9,5
P 4/10 10,5
P 4/12 12,7
P 4/19 19,1

Guide

Spacing elements, P 4 type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Elementy_dystansowe_typu_P_4_EN.pdf EN 14-05-2025 184.85 KB PDF Download
Catalog card ERGOM_Elementy_dystansowe_typu_P_4_PL.pdf PL 14-05-2025 229.47 KB PDF Download
