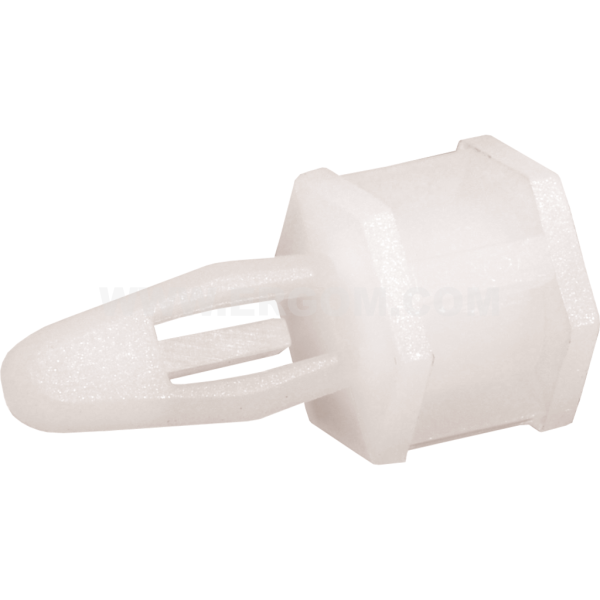

Spacing elements, P 3 type

Spacing elements, P 3 type

Main data of the product series

Product name
Spacing elements, P 3 type
Category
Not mating with cable ties
Material
polyamide 6.6
Operating temperature [°C]
-30 ÷ +85
Flammability class
UL 94 V2

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
P 3/6 E01EM-01080200101 2 100 pkt. Price on request
P 3/9 E01EM-01080200201 2 100 pkt. Price on request
P 3/12 E01EM-01080200301 2 100 pkt. Price on request
P 3/19 E01EM-01080200401 2 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6.6
Halogen-free yes
Installation with 3 x 6 Ø mm tap-screw; fitting printed circuit board: by latching in Ø4 hole; thickness of the board up to 1.6 mm.
Operating temperature [°C] -30 ÷ +85
Colour white
B 10,2
Klasa palności UL 94 V2
Name A
P 3/6 6,4
P 3/9 9,5
P 3/12 12,7
P 3/19 19,1

Guide

Spacing elements, P 3 type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Elementy_dystansowe_typu_P_3_EN.pdf EN 14-05-2025 228.73 KB PDF Download
Catalog card ERGOM_Elementy_dystansowe_typu_P_3_PL.pdf PL 14-05-2025 248.6 KB PDF Download
