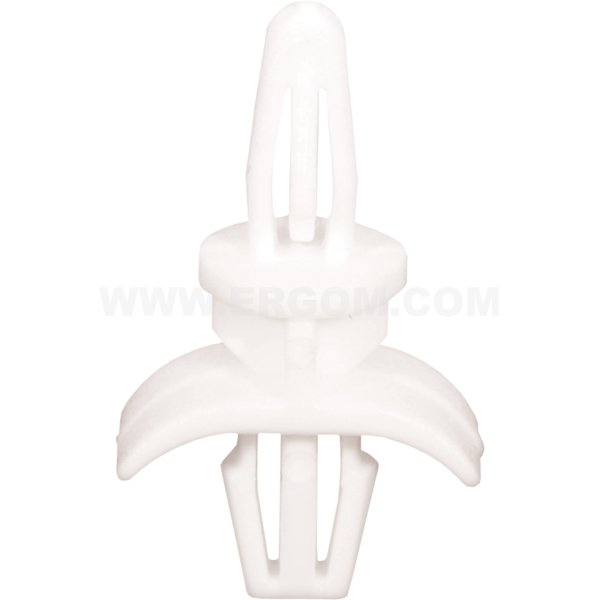

Spacing elements, P 2 type

Spacing elements, P 2 type

Main data of the product series

Product name: Spacing elements, P 2 type
Category: Not mating with cable ties
Material: polyamide 6.6
Operating temperature [°C]: -30 ÷ +85
Flammability class: UL 94 V2

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
P 2/6	E01EM-01080100100	2	100	pkt.	Price on request
P 2/9	E01EM-01080100201	2	100	pkt.	Price on request
P 2/12	E01EM-01080100300	2	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Material	polyamide 6.6
Halogen-free	yes

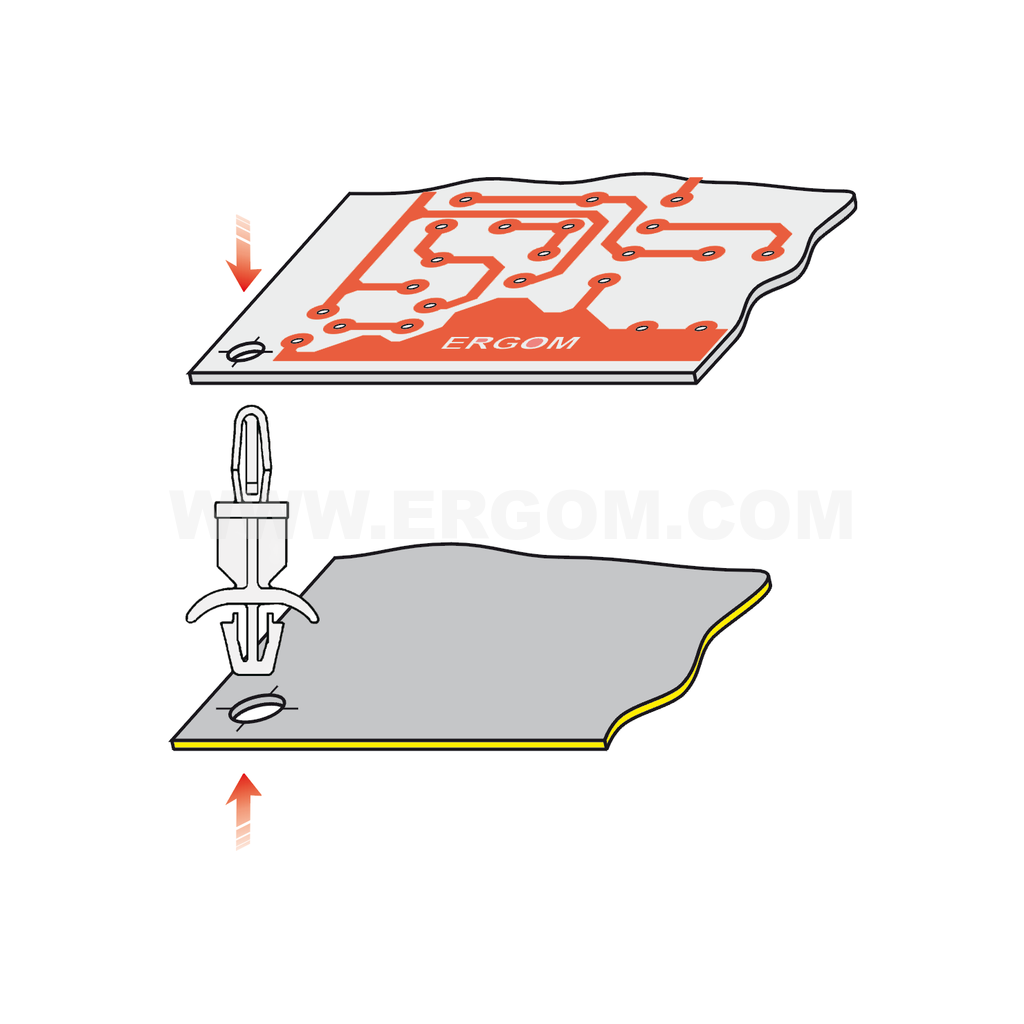

Installation	by snap-fastening in a Ø4.8 hole; thickness of the structural element from 0.8 mm to 2 mm; printed circuit board fitted by snap-fastening in a Ø4 hole; board thickness 1.6 mm
Operating temperature [°C]	-30 ÷ +85
Colour	white
B	10,2
Klasa palności	UL 94 V2

Name	A
P 2/6	6,4
P 2/9	9,5
P 2/12	12,7

Guide

Spacing elements, P 2 type

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Elementy_dystansowe_typu_P_2_EN.pdf	EN	14-05-2025	182.17 KB	PDF	Download
Catalog card	ERGOM_Elementy_dystansowe_typu_P_2_PL.pdf	PL	14-05-2025	202.46 KB	PDF	Download
