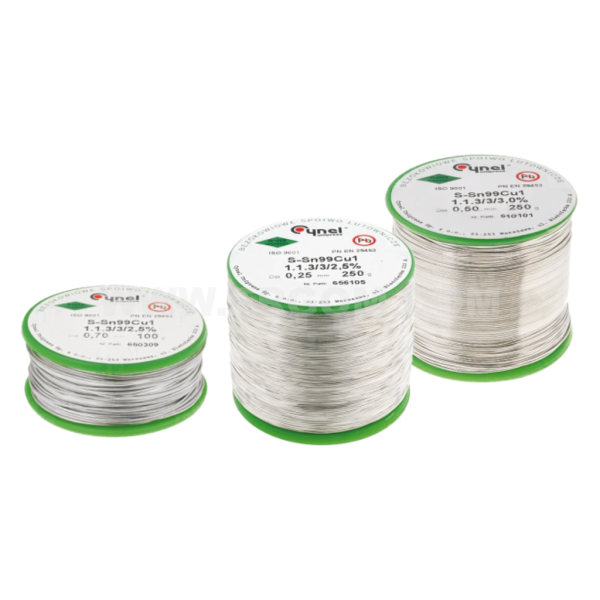

Soft soldering wires, DW.../Sn-Cu type

Soft soldering wires, DW.../Sn-Cu type

Main data of the product series

Product name
Soft soldering wires, DW.../Sn-Cu type
Category
Tools for soldering
Specific gravity
7,30g g/cm³
Soldering temperature [°C]
300 ÷ 380
Melting-point [°C]
230 ÷ 240

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
DW 0.38/SN-CU E05ML-01010100201 1 1 pcs. Price on request
DW 0.50/SN-CU E05ML-01010100301 1 1 pcs. Price on request
DW 0.56/SN-CU E05ML-01010100401 1 1 pcs. Price on request
DW 0.70/SN-CU E05ML-01010100501 1 1 pcs. Price on request
DW 1.00/SN-CU E05ML-01010100701 1 1 pcs. Price on request
DW 2.00/SN-CU E05ML-01010100801 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material 99% Sn, 1% Cu
Melting-point [°C] 230 ÷ 240
Soldering temperature [°C] 300 ÷ 380
Specific gravity 7,30g g/cm³
Name Wire diameter [mm]
DW 0.38/SN-CU 0,38
DW 0.50/SN-CU 0,50
DW 0.56/SN-CU 0,56
DW 0.70/SN-CU 0,70
DW 1.00/SN-CU 1,00
DW 2.00/SN-CU 2,00

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Druty_do_lutowania_miekkiego_typu_DW_Sn-Cu_z_topnikiem_EN.pdf EN 14-05-2025 216.62 KB PDF Download
Catalog card ERGOM_Druty_do_lutowania_miekkiego_typu_DW_Sn-Cu_z_topnikiem_PL.pdf PL 14-05-2025 211.29 KB PDF Download
