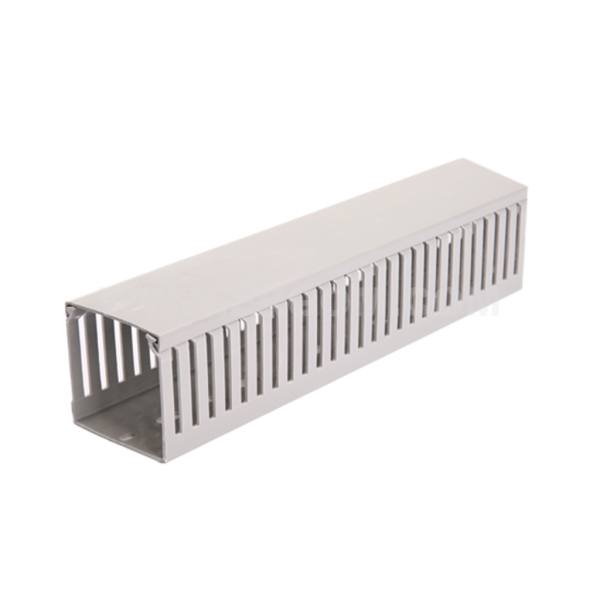

Slotted trunking, Halogen Free, KOPD-HF type

Slotted trunking, Halogen Free, KOPD-HF type

Main data of the product series

Product name
Slotted trunking, Halogen Free, KOPD-HF type
Category
Perforated
Operating temperature [°C]
-25 ÷ +90
Standards
EN 50085-1; EN 50085-2-3
Flammability class
UL 94 V2

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KOPD-HF 25x40/2 E02KK-01011200301 50 1 pcs. Price on request
KOPD-HF 25x60/2 E02KK-01011200401 35 1 pcs. Price on request
KOPD-HF 25x80/2 E02KK-01011200501 28 1 pcs. Price on request
KOPD-HF 40x40/2 E02KK-01011200701 35 1 pcs. Price on request
KOPD-HF 40x60/2 E02KK-01011200801 28 1 pcs. Price on request
KOPD-HF 40x80/2 E02KK-01011200901 20 1 pcs. Price on request
KOPD-HF 60x40/2 E02KK-01011201101 25 1 pcs. Price on request
KOPD-HF 60x60/2 E02KK-01011201201 16 1 pcs. Price on request
KOPD-HF 60x80/2 E02KK-01011201301 18 1 pcs. Price on request
KOPD-HF 80x40/2 E02KK-01011201501 20 1 pcs. Price on request
KOPD-HF 80x60/2 E02KK-01011201601 14 1 pcs. Price on request
KOPD-HF 80x80/2 E02KK-01011201701 15 1 pcs. Price on request
KOPD-HF 100x40/2 E02KK-01011202001 14 1 pcs. Price on request
KOPD-HF 100x60/2 E02KK-01011202101 10 1 pcs. Price on request
KOPD-HF 100x80/2 E02KK-01011202201 12 1 pcs. Price on request
KOPD-HF 120x40/2 E02KK-01011202401 12 1 pcs. Price on request
KOPD-HF 120x60/2 E02KK-01011202501 10 1 pcs. Price on request
KOPD-HF 120x80/2 E02KK-01011202601 8 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material PC/ABS
Halogen-free yes
Operating temperature [°C] -25 ÷ +90
Colour grey RAL 7035
Length [m] 2
Klasa palności UL 94 V2
Normy EN 50085-1; EN 50085-2-3
Name Useful cross-section [mm²] Design S H A
KOPD-HF 25x40/2 760 A 25 40 11
KOPD-HF 25x60/2 1100 A 25 60 11
KOPD-HF 25x80/2 1520 A 25 80 12
KOPD-HF 40x40/2 1214 A 40 40 11
KOPD-HF 40x60/2 1950 A 40 60 11
KOPD-HF 40x80/2 2530 A 40 80 12
KOPD-HF 60x40/2 1930 A 60 40 11
KOPD-HF 60x60/2 3046 A 60 60 11
KOPD-HF 60x80/2 4215 A 60 80 12
KOPD-HF 80x40/2 2530 B 80 40 11
KOPD-HF 80x60/2 4202 B 80 60 11
KOPD-HF 80x80/2 5620 B 80 80 12
KOPD-HF 100x40/2 3316 B 100 40 11
KOPD-HF 100x60/2 5236 B 100 60 11
KOPD-HF 100x80/2 7150 B 100 80 12
KOPD-HF 120x40/2 4040 B 120 40 11
KOPD-HF 120x60/2 6340 B 120 60 11
KOPD-HF 120x80/2 8640 B 120 80 12

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Korytka_kablowe_perforowane_typu_KOPD_HF_EN.pdf EN 14-05-2025 252.15 KB PDF Download
Catalog card ERGOM_Korytka_kablowe_perforowane_typu_KOPD_HF_PL.pdf PL 14-05-2025 300.11 KB PDF Download
