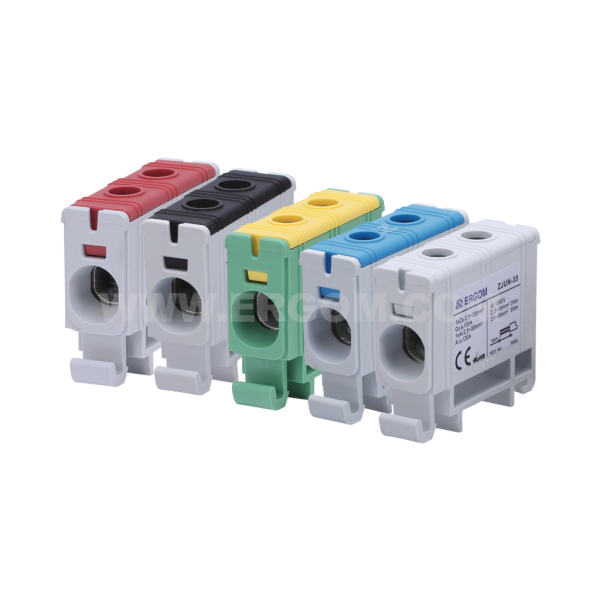

Single-circuit connector ZJUN-35 type: for 35 mm² wires 1000V

Main data of the product series

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom
ZJUN-35	R34RR-07010001603	20	20	pcs.	Price on request
ZJUN-35/BL	R34RR-07010002603	20	20	pcs.	Price on request
ZJUN-35/BK	R34RR-07010003303	20	20	pcs.	Price on request
ZJUN-35/RD	R34RR-07010004303	20	20	pcs.	Price on request
ZJUN-35 PE	R34RR-07020001603	20	20	pcs.	Price on request

Selected lines: 0

Continuous current Al [A]	120
Continuous current Cu [A]	135
Rated insulation voltage U_i [V]	1000
Electric strength [kV]	4
Body material	polyamide
Cover material	polyamide
Bolt material	galvanized steel coated with contact paste
Current circuit material	Al-alloy
Circuit insulation length [mm]	19
Terminal crimping shape on cord	trapezoid
Number of poles	1
Number of screws [pcs]	2
Number of tracks	1
Wire cross-section (cord) [mm²]	2,5÷35
Nominal cross-section [mm²]	35
Dimension (H x W x D) [mm]	47,3 x 16 x 40,3
Recommended tightening torque [Nm]	6
Recommended screwdriver tip type (hexagonal)	HEX: M4
Stopień ochrony	IP20
Klasa palności	UL 94 V0
Normy	EN 60947-7-1
