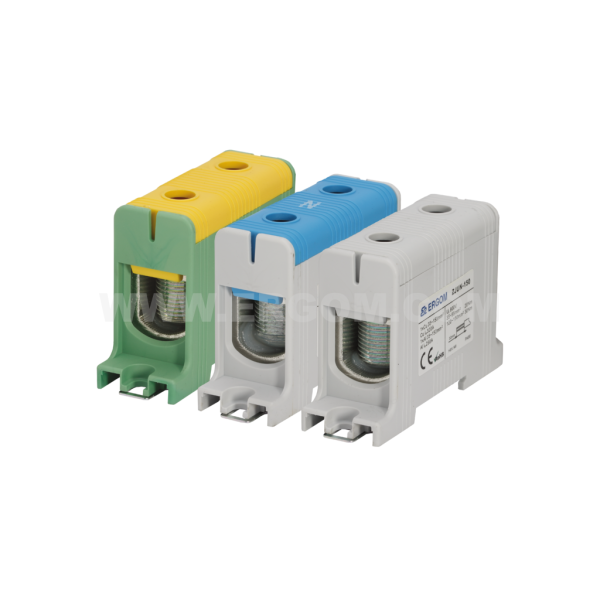

Single-circuit connector ZJUN-150 type: for 150 mm² wires 1000V

Main data of the product series

Product name: Single-circuit connector ZJUN-150 type: for 150 mm² wires 1000V
Category: Single-circuit connectors
IP degree of protection: IP20
Standards: EN 60947-7-1
Flammability class: UL 94 V0

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom
ZJUN-150	R34RR-07010001903	5	5	pcs.	Price on request
ZJUN-150/BL	R34RR-07010002903	5	5	pcs.	Price on request
ZJUN-150 PE	R34RR-07020001903	5	5	pcs.	Price on request

Selected lines: 0

Continuous current Al [A]	290
Continuous current Cu [A]	320
Rated insulation voltage U_i [V]	1000
Electric strength [kV]	4
Body material	polyamide 6.6
Cover material	polyamide 6.6
Bolt material	galvanized steel coated with contact paste
Current circuit material	Al-alloy
Circuit insulation length [mm]	30
Terminal crimping shape on cord	trapezoid
Number of poles	1
Number of screws [pcs]	2
Number of tracks	1
Wire cross-section (cord) [mm²]	35÷150
Nominal cross-section [mm²]	150
Dimension (H x W x D) [mm]	97 x 29 x 59
Recommended tightening torque [Nm]	30
Recommended screwdriver tip type (hexagonal)	HEX: M8
Stopień ochrony	IP20
Klasa palności	UL 94 V0
Normy	EN 60947-7-1
