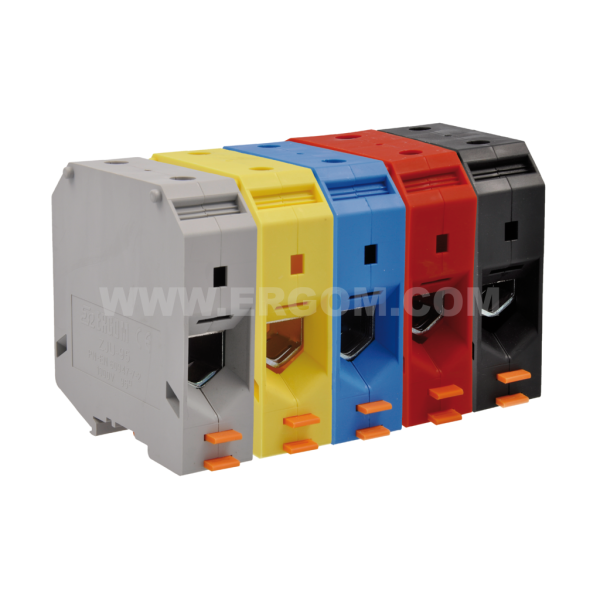

Single-circuit connector, ZJU2-95 type: for 95 mm² wires 800V

Single-circuit connector, ZJU2-95 type: for 95 mm² wires 800V

Main data of the product series

Product name
Single-circuit connector, ZJU2-95 type: for 95 mm² wires 800V
Category
Single-circuit connectors
IP degree of protection
IP20
Flammability class
UL 94 V0
Standards
EN 60947-7-1

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
ZJU2-95 R34RR-07010000805 5 5 pcs. Price on request
ZJU2-95/YL R34RR-07010000815 5 5 pcs. Price on request
ZJU2-95/BL R34RR-07010000825 5 5 pcs. Price on request
ZJU2-95/RD R34RR-07010000835 5 5 pcs. Price on request
ZJU2-95/BK R34RR-07010000845 5 5 pcs. Price on request

Selected lines: 0

Technical data

General data

Rated insulation voltage Ui [V] 1000
Constant current [A] 232
Electric strength [kV] -
Body material polyamide 6.6
Current circuit material Cu-alloy
Circuit insulation length [mm] 27
Terminal crimping shape on cord trapezoid
Cross-sections of cables (wire/cord) [mm²] 35÷95 / 25÷95
Nominal cross-section [mm²] 95
Ambient temperature [°C] -25 ÷ +55
Marker type EZU-10
Dimension (H x W x D) [mm] 90 x 25 x 80
Recommended tightening torque [Nm] 15
Recommended screwdriver tip type (hexagonal) 6
Stopień ochrony IP20
Klasa palności UL 94 V0
Normy EN 60947-7-1
Name Colour
ZJU2-95 grey
ZJU2-95/YL yellow
ZJU2-95/BL blue
ZJU2-95/RD red
ZJU2-95/BK black

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Zlaczka_1-torowa_ZJU2-95_do_przewodow_95_mm2_EN.pdf EN 22-05-2025 272.8 KB PDF Download
Catalog card ERGOM_Zlaczka_1-torowa_ZJU2-95_do_przewodow_95_mm2_PL.pdf PL 22-05-2025 310.53 KB PDF Download
