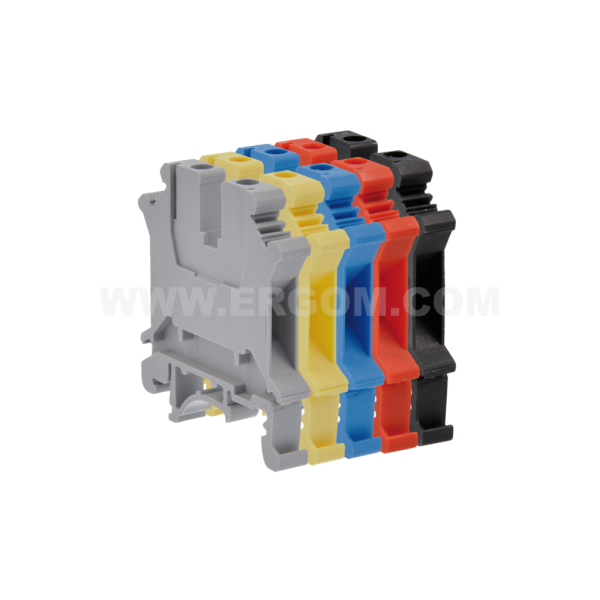

Single-circuit connector, ZJU2-4 type: for 4 mm² wires 800V

Single-circuit connector, ZJU2-4 type: for 4 mm² wires 800V

Main data of the product series

Product name
Single-circuit connector, ZJU2-4 type: for 4 mm² wires 800V
Category
Single-circuit connectors
IP degree of protection
IP20
Flammability class
UL 94 V0
Standards
EN 60947-7-1

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
ZJU2-4 R34RR-07010000305 50 50 pcs. Price on request
ZJU2-4/YL R34RR-07010000315 50 50 pcs. Price on request
ZJU2-4/BL R34RR-07010000325 50 50 pcs. Price on request
ZJU2-4/RD R34RR-07010000335 50 50 pcs. Price on request
ZJU2-4/BK R34RR-07010000345 50 50 pcs. Price on request

Selected lines: 0

Technical data

General data

Nominal cross-section [mm²] -
Rated insulation voltage Ui [V] 800
Constant current [A] 41
Electric strength [kV] -
Body material polyamide 6.6
Current circuit material Cu-alloy
Circuit insulation length [mm] 8
Terminal crimping shape on cord hexagon
Cross-sections of cables (wire/cord) [mm²] 0,2÷6 / 0,2÷4
Nominal cross-section [mm²] 4
Ambient temperature [°C] -25 ÷ +55
Marker type EZU-6
Dimension (H x W x D) [mm] 42,5 x 6,2 x 47
Recommended tightening torque [Nm] 0,5
Recommended screwdriver tip type (flat) 3,5x0,6
Stopień ochrony IP20
Klasa palności UL 94 V0
Normy EN 60947-7-1
Name Colour
ZJU2-4 grey
ZJU2-4/YL yellow
ZJU2-4/BL blue
ZJU2-4/RD red
ZJU2-4/BK black

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Zlaczka_1-torowa_ZJU2-4_do_przewodow_4_mm2_EN.pdf EN 22-05-2025 285.45 KB PDF Download
Catalog card ERGOM_Zlaczka_1-torowa_ZJU2-4_do_przewodow_4_mm2_PL.pdf PL 22-05-2025 306.12 KB PDF Download
