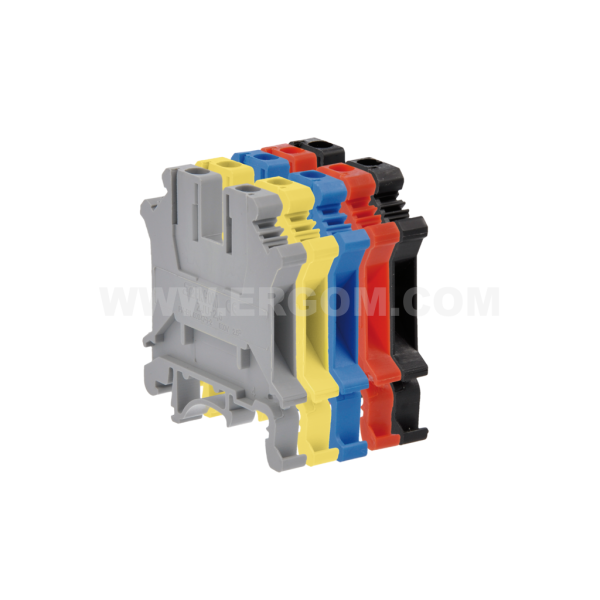

Single-circuit connector, ZJU2-2,5 type: for 2.5 mm² wires 800V

Single-circuit connector, ZJU2-2,5 type: for 2.5 mm² wires 800V

Main data of the product series

Product name
Single-circuit connector, ZJU2-2,5 type: for 2.5 mm² wires 800V
Category
Single-circuit connectors
IP degree of protection
IP20
Flammability class
UL 94 V0
Standards
EN 60947-7-1

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
ZJU2-2,5 R34RR-07010000205 60 60 pcs. Price on request
ZJU2-2,5/YL R34RR-07010000215 60 60 pcs. Price on request
ZJU2-2,5/BL R34RR-07010000225 60 60 pcs. Price on request
ZJU2-2,5/RD R34RR-07010000235 60 60 pcs. Price on request
ZJU2-2,5/BK R34RR-07010000245 60 60 pcs. Price on request

Selected lines: 0

Technical data

General data

Rated insulation voltage Ui [V] 800
Constant current [A] 32
Electric strength [kV] -
Body material polyamide 6.6
Current circuit material Cu-alloy
Circuit insulation length [mm] 8
Terminal crimping shape on cord hexagon
Cross-sections of cables (wire/cord) [mm²] 0,2÷4 / 0,2÷2,5
Nominal cross-section [mm²] 2,5
Ambient temperature [°C] -25 ÷ +55
Marker type EZU-5
Dimension (H x W x D) [mm] 42,5 x 5,2 x 47
Recommended tightening torque [Nm] 0,5
Recommended screwdriver tip type (flat) 3,5x0,6
Stopień ochrony IP20
Klasa palności UL 94 V0
Normy EN 60947-7-1
Name Colour
ZJU2-2,5 grey
ZJU2-2,5/YL yellow
ZJU2-2,5/BL blue
ZJU2-2,5/RD red
ZJU2-2,5/BK black

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Zlaczka_1-torowa_ZJU2-2_5_do_przewodow_2_5_mm2_EN.pdf EN 22-05-2025 284.43 KB PDF Download
Catalog card ERGOM_Zlaczka_1-torowa_ZJU2-2_5_do_przewodow_2_5_mm2_PL.pdf PL 22-05-2025 305.75 KB PDF Download
