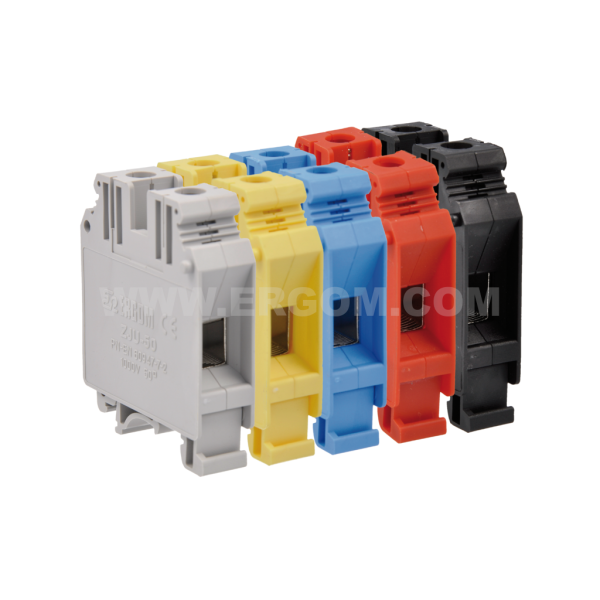

Single-circuit connector, ZJU-50 type: for 50 mm² wires

Single-circuit connector, ZJU-50 type: for 50 mm² wires

Main data of the product series

Product name
Single-circuit connector, ZJU-50 type: for 50 mm² wires
Category
Single-circuit connectors
IP degree of protection
IP00
Flammability class
UL 94 V0
Standards
EN 60947-7-1

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
ZJU-50/YL R34RR-07010000711 20 1 pcs. Price on request
ZJU-50/BL R34RR-07010000723 20 20 pcs. Price on request
ZJU-50/RD R34RR-07010000733 20 20 pcs. Price on request
ZJU-50/BK R34RR-07010000743 20 20 pcs. Price on request

Selected lines: 0

Technical data

General data

Rated insulation voltage Ui [V] 1000
Constant current [A] 150
Electric strength [kV] 4
Body material polyamide
Circuit insulation length [mm] 15
Terminal crimping shape on cord trapezoid
Wire cross-section (cord) [mm²] 10÷50 / 10÷35
Nominal cross-section [mm²] 50
Ambient temperature [°C] -25 ÷ +55
Marker type EZU-10
Dimension (H x W x D) [mm] 50 x 62 x 15,2
Recommended tightening torque [Nm] 3
Recommended screwdriver tip type (hexagonal) 3
Stopień ochrony IP00
Klasa palności UL 94 V0
Normy EN 60947-7-1
Name Colour
ZJU-50/YL yellow
ZJU-50/BL blue
ZJU-50/RD red
ZJU-50/BK black

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Zlaczka_1-torowa_ZJU-50_do_przewodow_50_mm2_EN.pdf EN 15-05-2025 304.51 KB PDF Download
Catalog card ERGOM_Zlaczka_1-torowa_ZJU-50_do_przewodow_50_mm2_PL.pdf PL 15-05-2025 323.07 KB PDF Download
