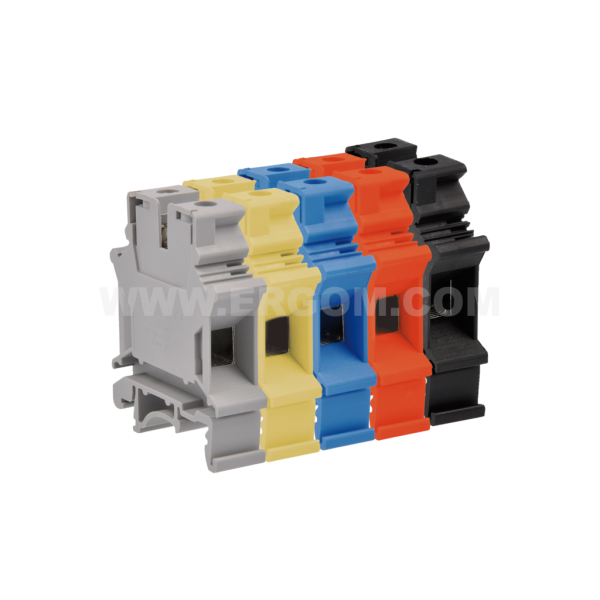

Single-circuit connector, ZJU-25 type: for 25 mm² wires

Single-circuit connector, ZJU-25 type: for 25 mm² wires

Main data of the product series

Product name
Single-circuit connector, ZJU-25 type: for 25 mm² wires
Category
Single-circuit connectors
IP degree of protection
IP00
Flammability class
UL 94 V0
Standards
EN 60947-7-1

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
ZJU-25 R34RR-07010000603 36 36 pcs. Price on request
ZJU-25/YL R34RR-07010000611 36 1 pcs. Price on request
ZJU-25/RD R34RR-07010000631 36 1 pcs. Price on request
ZJU-25/BK R34RR-07010000643 36 36 pcs. Price on request

Selected lines: 0

Technical data

General data

Rated insulation voltage Ui [V] 800
Constant current [A] 101
Electric strength [kV] 4
Body material polyamide
Circuit insulation length [mm] 12,5
Terminal crimping shape on cord trapezoid
Wire cross-section (cord) [mm²] 2,5÷25 / 4÷16
Nominal cross-section [mm²] 25
Ambient temperature [°C] -25 ÷ +55
Marker type EZU-10
Dimension (H x W x D) [mm] 42,5 x 54 x 12,2
Recommended tightening torque [Nm] 1,2
Recommended screwdriver tip type (cross) PH1
Recommended screwdriver tip type (flat) 4x0.8
Stopień ochrony IP00
Klasa palności UL 94 V0
Normy EN 60947-7-1
Name Colour
ZJU-25 grey
ZJU-25/YL yellow
ZJU-25/RD red
ZJU-25/BK black

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Zlaczka_1-torowa_ZJU-25_do_przewodow_25_mm2_EN.pdf EN 15-05-2025 315.45 KB PDF Download
Catalog card ERGOM_Zlaczka_1-torowa_ZJU-25_do_przewodow_25_mm2_PL.pdf PL 15-05-2025 318.33 KB PDF Download
