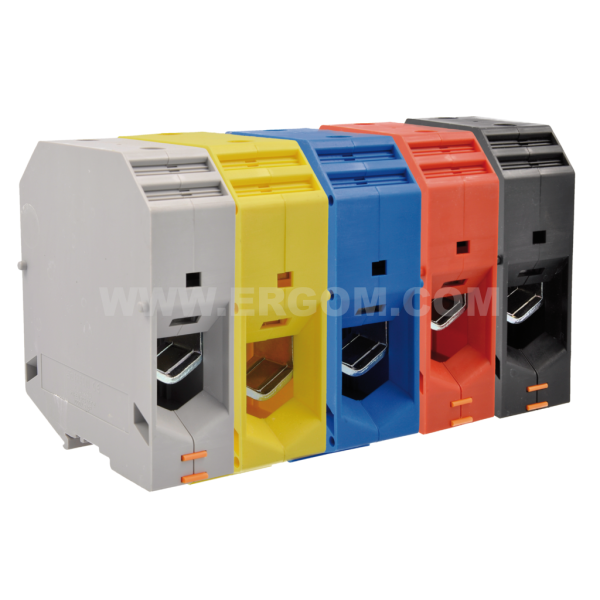

Single-circuit connector, ZJU-240 type: for 240 mm² wires 800V

Single-circuit connector, ZJU-240 type: for 240 mm² wires 800V

Main data of the product series

Product name
Single-circuit connector, ZJU-240 type: for 240 mm² wires 800V
Category
Single-circuit connectors
IP degree of protection
IP20
Flammability class
UL 94 V0
Standards
EN 60947-7-1

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
ZJU-240 R34RR-07010001003 3 3 pcs. Price on request
ZJU-240/YL R34RR-07010001013 3 3 pcs. Price on request
ZJU-240/BL R34RR-07010001023 3 3 pcs. Price on request
ZJU-240/RD R34RR-07010001033 3 3 pcs. Price on request
ZJU-240/BK R34RR-07010001043 3 3 pcs. Price on request

Selected lines: 0

Technical data

General data

Rated insulation voltage Ui [V] 800
Constant current [A] 415
Electric strength [kV] -
Body material polyamide
Circuit insulation length [mm] 35
Terminal crimping shape on cord trapezoid
Wire cross-section (cord) [mm²] 70÷240 / 70÷240
Nominal cross-section [mm²] 240
Ambient temperature [°C] -25 ÷ +55
Marker type EZU-10
Dimension (H x W x D) [mm] 100 x 131,5 x 37
Recommended tightening torque [Nm] 25
Recommended screwdriver tip type (hexagonal) 8
Stopień ochrony IP20
Klasa palności UL 94 V0
Normy EN 60947-7-1
Name Colour
ZJU-240 grey
ZJU-240/YL yellow
ZJU-240/BL blue
ZJU-240/RD red
ZJU-240/BK black

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Zlaczka_1-torowa_ZJU-240_do_przewodow_240_mm2_EN.pdf EN 15-05-2025 201.76 KB PDF Download
Catalog card ERGOM_Zlaczka_1-torowa_ZJU-240_do_przewodow_240_mm2_PL.pdf PL 15-05-2025 240.65 KB PDF Download
