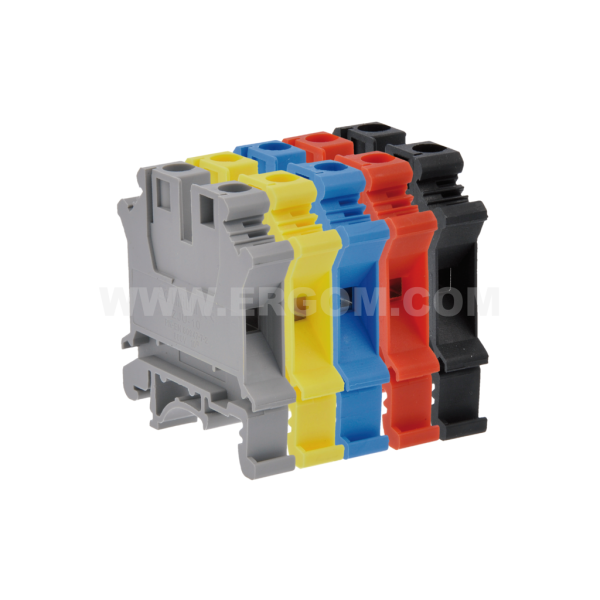

Single-circuit connector, ZJU-10 type: for 10 mm² wires

Single-circuit connector, ZJU-10 type: for 10 mm² wires

Main data of the product series

Product name
Single-circuit connector, ZJU-10 type: for 10 mm² wires
Category
Single-circuit connectors
IP degree of protection
IP00
Flammability class
UL 94 V0
Standards
EN 60947-7-1

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
ZJU-10/RD R34RR-07010000431 40 1 pcs. Price on request
ZJU-10/BK R34RR-07010000441 40 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Rated insulation voltage Ui [V] 800
Constant current [A] 57
Electric strength [kV] 4
Body material polyamide
Circuit insulation length [mm] 8
Terminal crimping shape on cord hexagon
Wire cross-section (cord) [mm²] 0,2÷10 / 0,2÷6
Nominal cross-section [mm²] 10
Ambient temperature [°C] -25 ÷ +55
Marker type EZU-8
Dimension (H x W x D) [mm] 42,5 x 47 x 8,2
Recommended tightening torque [Nm] 1,2
Recommended screwdriver tip type (cross) PH1
Recommended screwdriver tip type (flat) 4x0,6
Stopień ochrony IP00
Klasa palności UL 94 V0
Normy EN 60947-7-1
Name Colour
ZJU-10/RD red
ZJU-10/BK black

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Zlaczka_1-torowa_ZJU-10_do_przewodow_10_mm2_EN.pdf EN 15-05-2025 316.07 KB PDF Download
Catalog card ERGOM_Zlaczka_1-torowa_ZJU-10_do_przewodow_10_mm2_PL.pdf PL 15-05-2025 318.74 KB PDF Download
