Shaped punching dies, WKY...

Shaped punching dies, WKY...

Main data of the product series

Product name
Shaped punching dies, WKY...
Category
Punching dies for hydraulic punching tools
Note!

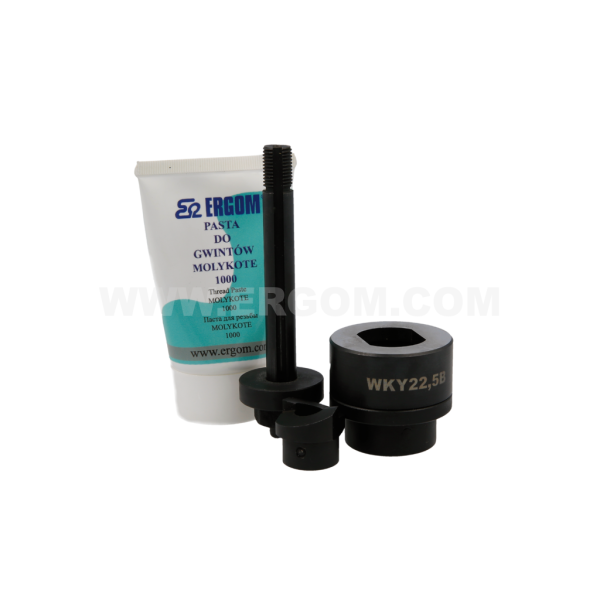

Punching dies WKY - sold with MOLYKOTE 1000 thread paste. Other sizes available on request.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
WKY 22,5/A E06WD-01060300100 1 1 pcs. Price on request
WKY 30,5/A E06WD-01060300200 1 1 pcs. Price on request
WKY 22,5/B E06WD-01060300300 1 1 pcs. Price on request
WKY 22,5/C E06WD-01060300400 1 1 pcs. Price on request

Selected lines: 0

Technical data

Name Central hole diameter [mm] Draw mandrel Design A B
WKY 22,5/A 10,5÷11 3/8''/M10-96 A 22,5 3
WKY 30,5/A 16,5÷17 3/4"/M16-120 A 30,5 3
WKY 22,5/B 10,5÷11 3/8''/M10-96 B 18,5 22,5
WKY 22,5/C 10,5÷11 3/8''/M10-96 C 20,1 22,5

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Wycinaki_ksztaltowe_WKY_EN.pdf EN 14-05-2025 162.43 KB PDF Download
Catalog card ERGOM_Wycinaki_ksztaltowe_WKY_PL.pdf PL 14-05-2025 204.41 KB PDF Download
