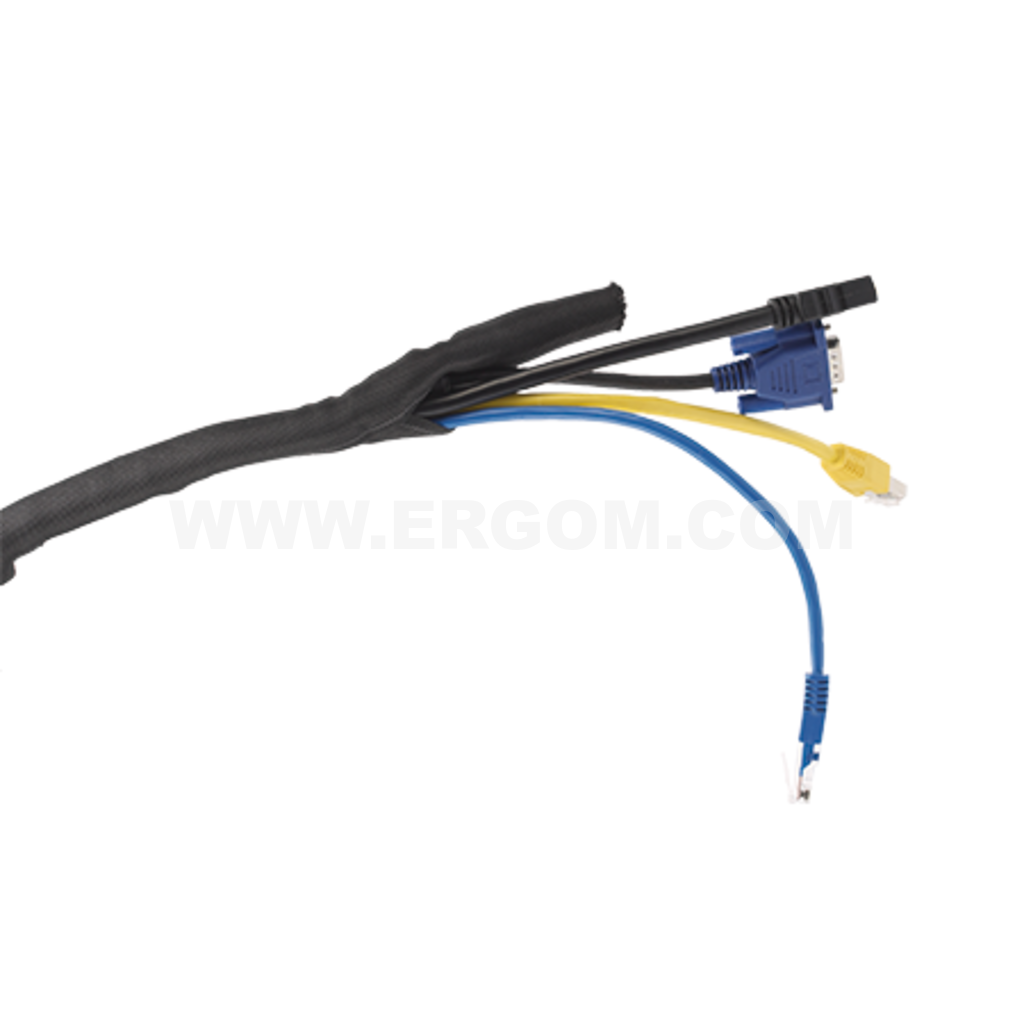

Self-closing wrap OSS type

Self-closing wrap OSS type

Main data of the product series

Product name
Self-closing wrap OSS type
Category
Cables and bundle protection
Flammability class
the product meets the requirements of R22 for the HL3 hazard level in accordance with EN 45545-2:2013

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
OSS 5 E05ME-03010600101 25 25 m. Price on request
OSS 8 E05ME-03010600201 25 25 m. Price on request
OSS 10 E05ME-03010600301 25 25 m. Price on request
OSS 13 E05ME-03010600401 25 25 m. Price on request
OSS 16 E05ME-03010600501 25 25 m. Price on request
OSS 19 E05ME-03010600601 25 25 m. Price on request
OSS 25 E05ME-03010600701 25 25 m. Price on request
OSS 29 E05ME-03010600801 25 25 m. Price on request
OSS 32 E05ME-03010600901 25 25 m. Price on request
OSS 38 E05ME-03010601001 25 25 m. Price on request
OSS 50 E05ME-03010601201 25 25 m. Price on request

Selected lines: 0

Technical data

General data

Material Polyester
Colour black
Operating temperature [°C] -40 ÷ 150
Melting-point [°C] 240
Klasa palności the product meets the requirements of R22 for the HL3 hazard level in accordance with EN 45545-2:2013
Normy DIN 5510-2:2009; EN 45545-2:2013
Name Max. bundle diameter [mm] Width after expand [mm] d
OSS 5 6 28 +/- 3 5
OSS 8 9 38 +/- 3 8
OSS 10 11 50 +/- 5 10
OSS 13 14 60 +/- 5 13
OSS 16 17 80 +/- 5 16
OSS 19 20 100 +/- 10 19
OSS 25 26 120 +/- 10 25
OSS 29 30 135 +/- 10 29
OSS 32 34 155 +/- 10 32
OSS 38 40 180 +/- 10 38
OSS 50 52 230 +/- 10 50

Guide

Self-closing wrap OSS type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Oploty_ochronne_samozamykajace_typu_OSS_EN.pdf EN 14-05-2025 323.74 KB PDF Download
Catalog card ERGOM_Oploty_ochronne_samozamykajace_typu_OSS_PL.pdf PL 14-05-2025 336.5 KB PDF Download
