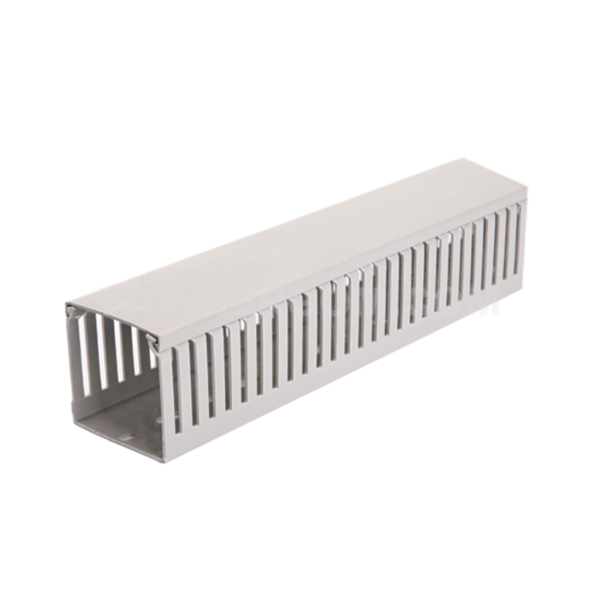

Self-adhesive slotted trunking, KOPDS type

Self-adhesive slotted trunking, KOPDS type

Main data of the product series

Product name: Self-adhesive slotted trunking, KOPDS type
Category: Perforated
Operating temperature [°C]: -20 ÷ +60
Standards: EN 50085-1; EN 50085-2-3
Flammability class: UL 94 V0

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
KOPDS 25X25/2	E02KK-01010401400	1	1	pcs.	Price on request
KOPDS 25X40/2	E02KK-01010401500	1	1	pcs.	Price on request
KOPDS 25X60/2	E02KK-01010401600	1	1	pcs.	Price on request
KOPDS 25X80/2	E02KK-01010401700	1	1	pcs.	Price on request
KOPDS 40X25/2	E02KK-01010401800	1	1	pcs.	Price on request
KOPDS 40X40/2	E02KK-01010401900	1	1	pcs.	Price on request
KOPDS 40X60/2	E02KK-01010402000	1	1	pcs.	Price on request
KOPDS 60X40/2	E02KK-01010402100	1	1	pcs.	Price on request
KOPDS 60X60/2	E02KK-01010402200	1	1	pcs.	Price on request
KOPDS 60X80/2	E02KK-01010402300	1	1	pcs.	Price on request
KOPDS 80X40/2	E02KK-01010402400	1	1	pcs.	Price on request
KOPDS100X40/2	E02KK-01010402500	1	1	pcs.	Price on request
KOPDS 120X40/2	E02KK-01010402600	1	1	pcs.	Price on request

Selected lines: 0

Technical data

General data

Material	PCV
Operating temperature [°C]	-20 ÷ +60
Colour	grey RAL 7030
Length [m]	2
Klasa palności	UL 94 V0
Normy	EN 50085-1; EN 50085-2-3

Name	Number of separators [pcs]	Useful cross-section [mm²]	Design	S	H	A
KOPDS 25X25/2	-	480	A	25	25	11
KOPDS 25X40/2	-	760	A	25	40	11
KOPDS 25X60/2	-	752	A	25	60	11
KOPDS 25X80/2	-	1214	A	25	80	12
KOPDS 40X25/2	-	1930	A	40	25	11
KOPDS 40X40/2	-	2530	A	40	40	11
KOPDS 40X60/2	-	3316	A	40	60	11
KOPDS 60X40/2	2	4040	A	60	40	11
KOPDS 60X60/2	2	3046	A	60	60	11
KOPDS 60X80/2	2	4215	A	60	80	12
KOPDS 80X40/2	2	2530	B	80	40	11
KOPDS100X40/2	2	3316	B	100	40	11
KOPDS 120X40/2	2	4040	B	120	40	11

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Korytka_perforowane_samoprzylepne_typu_KOPDS_EN.pdf	EN	14-05-2025	269.53 KB	PDF	Download
Catalog card	ERGOM_Korytka_perforowane_samoprzylepne_typu_KOPDS_PL.pdf	PL	14-05-2025	291.9 KB	PDF	Download
