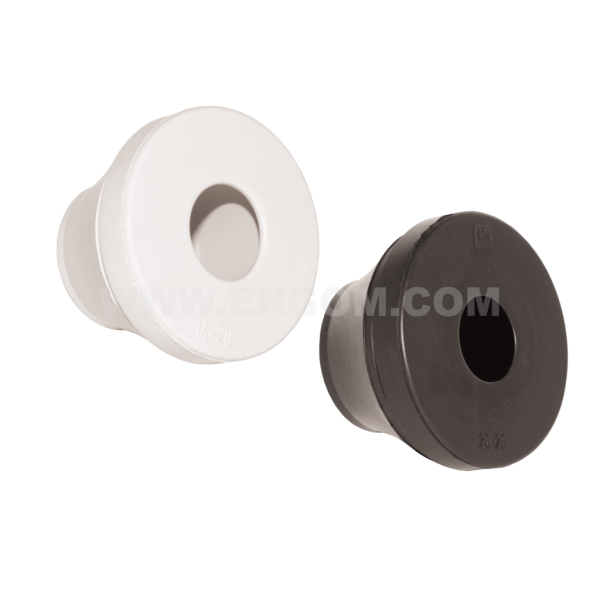

Rubber grommet, PDE..M type

Rubber grommet, PDE..M type

Main data of the product series

Product name
Rubber grommet, PDE..M type
Category
Cable grommets
Operating temperature [°C]
-40 ÷ +110
Material
EPDM
Flammability class
UL 94 HB

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
PDE 12M BK E03DK-05010211101 100 50 pcs. Price on request
PDE 16M BK E03DK-05010211201 50 50 pcs. Price on request
PDE 20M BK E03DK-05010211301 100 50 pcs. Price on request
PDE 25M BK E03DK-05010211401 100 50 pcs. Price on request
PDE 32M BK E03DK-05010211501 50 25 pcs. Price on request
PDE 40M BK E03DK-05010211601 50 25 pcs. Price on request
PDE 50M BK E03DK-05010211701 20 10 pcs. Price on request
PDE 63M BK E03DK-05010211801 10 5 pcs. Price on request
PDE 12M WT E03DK-05010213101 100 50 pcs. Price on request
PDE 16M WT E03DK-05010213201 50 50 pcs. Price on request
PDE 20M WT E03DK-05010213301 50 50 pcs. Price on request
PDE 25M WT E03DK-05010213401 50 50 pcs. Price on request
PDE 32M WT E03DK-05010213501 25 25 pcs. Price on request
PDE 40M WT E03DK-05010213601 25 25 pcs. Price on request
PDE 50M WT E03DK-05010213701 10 10 pcs. Price on request
PDE 63M WT E03DK-05010213801 10 5 pcs. Price on request

Selected lines: 0

Technical data

General data

Material EPDM
Halogen-free yes
Operating temperature [°C] -40 ÷ +110
Klasa szczelności IP67
Klasa palności UL 94 HB
Normy EN 60529
Name Colour Cable external diameter [mm] A B Da H H1
PDE 12M BK black (RAL 9005) 4÷7 12,5 0,5÷2 20,0 12,8 5,6
PDE 16M BK black (RAL 9005) 5÷9 16,5 1÷4 21,0 17,7 11,0
PDE 20M BK black (RAL 9005) 8÷13 20,5 1÷4 25,5 20,0 13,4
PDE 25M BK black (RAL 9005) 11÷17 25,5 1÷4 30,5 21,3 15,3
PDE 32M BK black (RAL 9005) 15÷20 32,5 1÷4 38,5 24,6 18,6
PDE 40M BK black (RAL 9005) 19÷28 40,5 1÷4 48,5 29,5 21,7
PDE 50M BK black (RAL 9005) 27÷35 50,5 1÷4 60,5 34,8 25,5
PDE 63M BK black (RAL 9005) 34÷45 63,5 1÷4 73,5 40,0 28,9
PDE 12M WT white 4÷7 12,5 0,5÷2 20,0 12,8 5,6
PDE 16M WT white 5÷9 16,5 1÷4 21,0 17,7 11,0
PDE 20M WT white 8÷13 20,5 1÷4 25,5 20,0 13,4
PDE 25M WT white 11÷17 25,5 1÷4 30,5 21,3 15,3
PDE 32M WT white 15÷20 32,5 1÷4 38,5 24,6 18,6
PDE 40M WT white 19÷28 40,5 1÷4 48,5 29,5 21,7
PDE 50M WT white 27÷35 50,5 1÷4 60,5 34,8 25,5
PDE 63M WT white 34÷45 63,5 1÷4 73,5 40,0 28,9

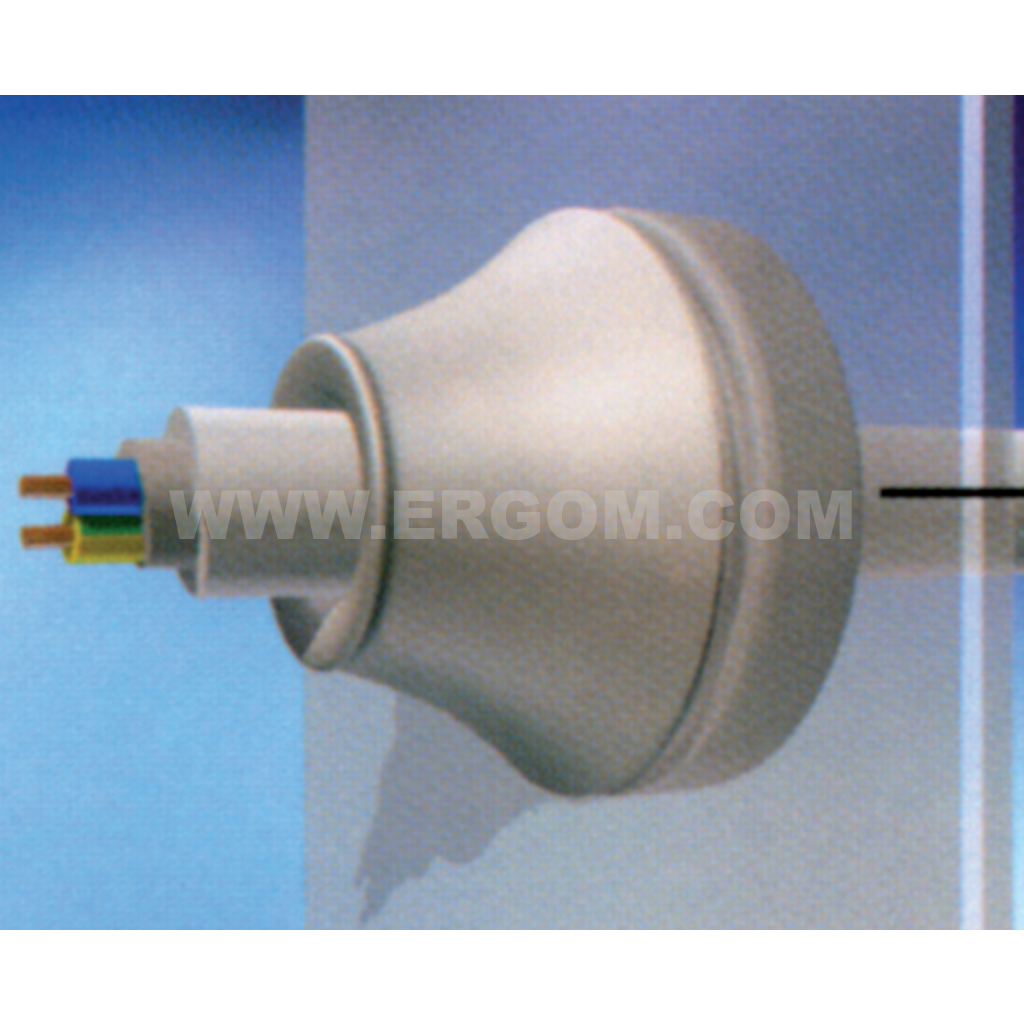

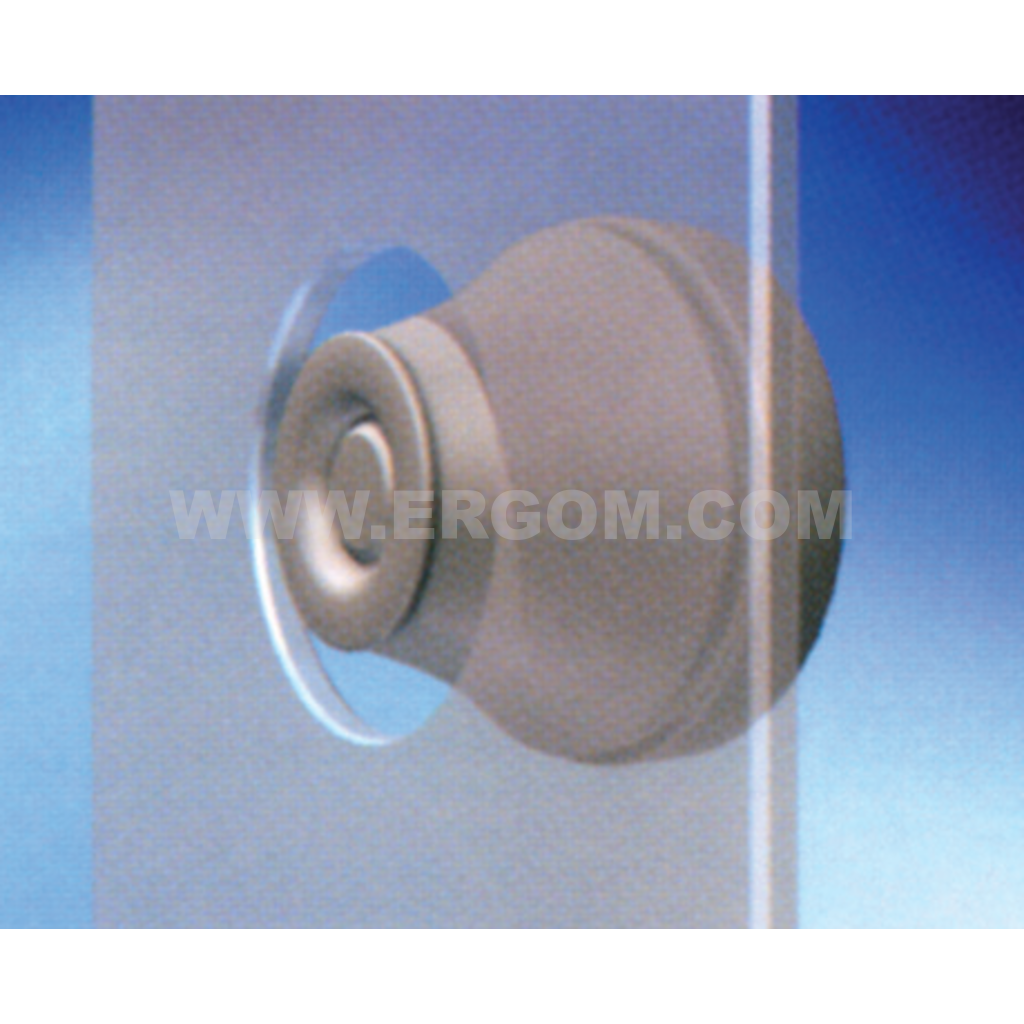

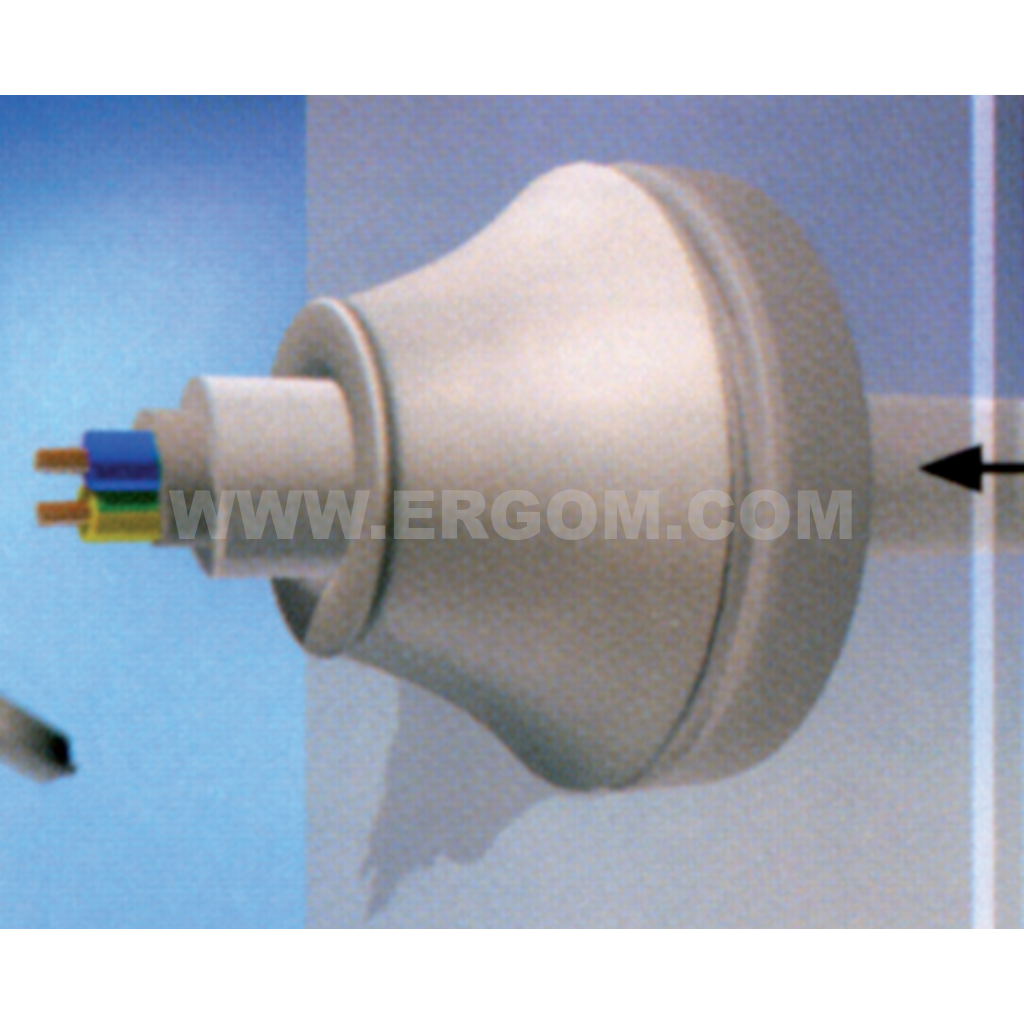

Guide

Rubber grommet, PDE..M type
Rubber grommet, PDE..M type
Rubber grommet, PDE..M type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Przepust_gumowy_typu_PDE_M_EN.pdf EN 14-05-2025 259.71 KB PDF Download
Catalog card ERGOM_Przepust_gumowy_typu_PDE_M_PL.pdf PL 14-05-2025 275.29 KB PDF Download
