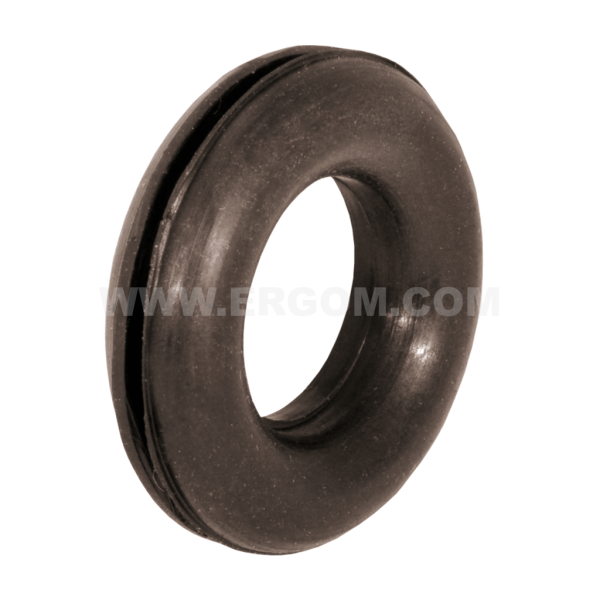

Rubber grommet, GH type

Rubber grommet, GH type

Main data of the product series

Product name: Rubber grommet, GH type
Category: Cable grommets
Material: SBR+NR rubber
Operating temperature [°C]: -30 ÷ +85
Colour: black

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
GH 6	E01PK-01050100101	1	100	pkt.	Price on request
GH 7	E01PK-01050100201	1	100	pkt.	Price on request
GH 9	E01PK-01050100301	1	100	pkt.	Price on request
GH 11	E01PK-01050100401	1	100	pkt.	Price on request
GH 13	E01PK-01050100501	1	100	pkt.	Price on request
GH 16	E01PK-01050100601	1	100	pkt.	Price on request
GH 21	E01PK-01050100701	1	100	pkt.	Price on request
GH 29	E01PK-01050100801	1	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Material	SBR+NR rubber
Halogen-free	yes
Colour	black
Operating temperature [°C]	-30 ÷ +85

Name	A	D	d	L
GH 6	10,0	15	6,0	9,0
GH 7	13,0	20	8,0	8
GH 9	15,5	24	10,0	9,0
GH 11	21,0	28	13,5	9,0
GH 13	23,0	29	15,0	9,0
GH 16	25,0	31	16,0	9,0
GH 21	32,0	38	24,0	7,5
GH 29	38,0	45	30,0	10,0

Guide

Rubber grommet, GH type

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Przepusty_gumowe_typu_GH_EN.pdf	EN	14-05-2025	229.06 KB	PDF	Download
Catalog card	ERGOM_Przepusty_gumowe_typu_GH_PL.pdf	PL	14-05-2025	274.91 KB	PDF	Download
