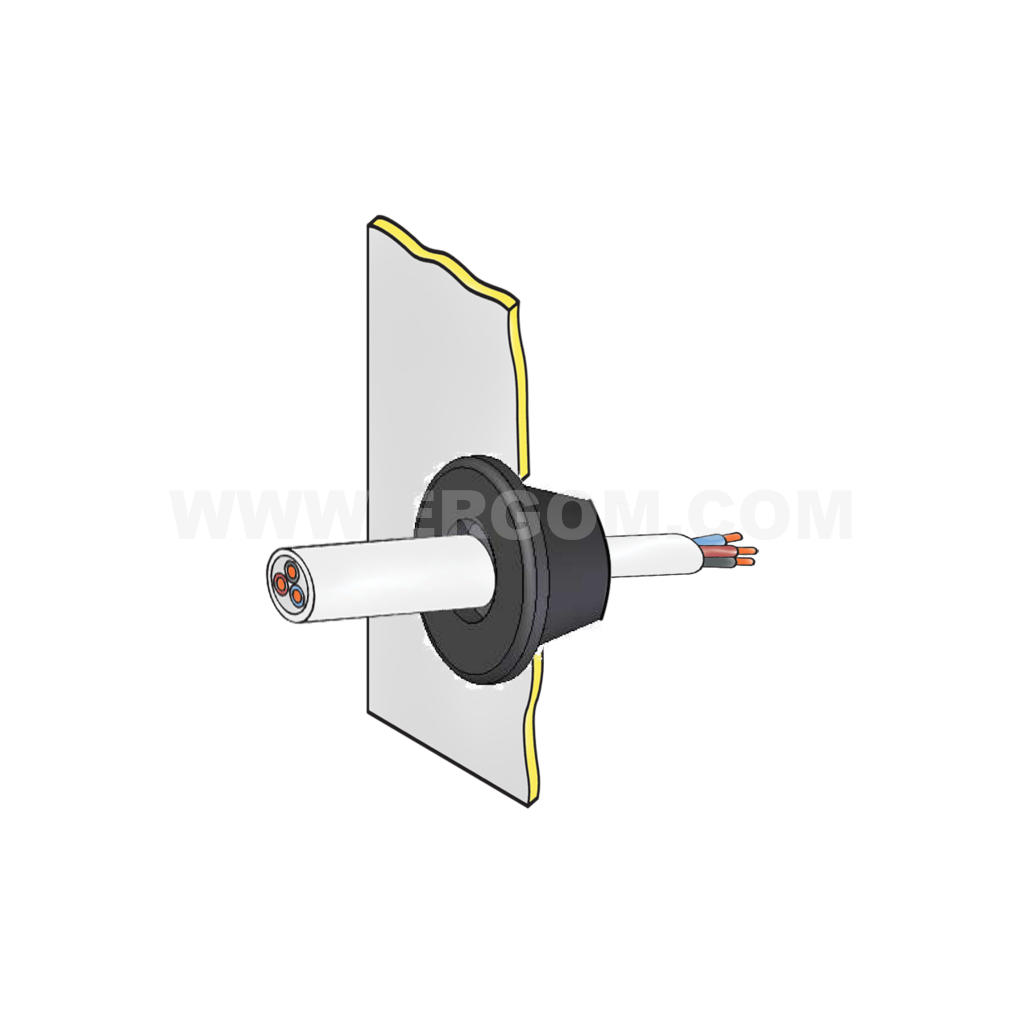

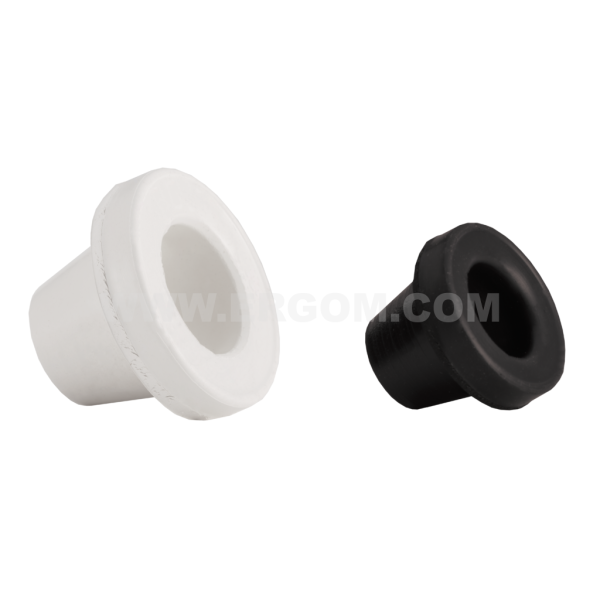

Rubber grommet, BDE type

Rubber grommet, BDE type

Main data of the product series

Product name: Rubber grommet, BDE type
Category: Cable grommets
Operating temperature [°C]: -30 ÷ +85
Material: SBR+NR rubber

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
BDE 11	E03DK-05010100101	100	100	pcs.	Price on request
BDE 11WT	E03DK-05010100201	100	100	pcs.	Price on request
BDE 13	E03DK-05010100301	100	100	pcs.	Price on request
BDE 13WT	E03DK-05010100401	100	100	pcs.	Price on request
BDE 16	E03DK-05010100501	100	100	pcs.	Price on request
BDE 16WT	E03DK-05010100601	100	100	pcs.	Price on request
BDE 21	E03DK-05010100701	100	100	pcs.	Price on request
BDE 29	E03DK-05010100901	50	50	pcs.	Price on request
BDE 36	E03DK-05010101101	20	20	pcs.	Price on request
BDE 42	E03DK-05010101301	10	10	pcs.	Price on request
BDE 48	E03DK-05010101501	10	10	pcs.	Price on request
BDE 54	E03DK-05010101701	10	10	pcs.	Price on request
BDE 54 WT	E03DK-05010101801	10	10	pcs.	Price on request
BDE 67	E03DK-05010101901	10	10	pcs.	Price on request

Selected lines: 0

Technical data

General data

Material	SBR+NR rubber
Halogen-free	yes
Operating temperature [°C]	-30 ÷ +85
Klasa szczelności	IP30 minimum

Name	Colour	Cable external diameter [mm]	A	D	d	H	L
BDE 11	black	6 ÷8	16,5	24	7,0	4	30
BDE 11WT	white	6 ÷8	16,5	24	7,0	4	30
BDE 13	black	9÷12	21	31	8,0	6	23
BDE 13WT	white	9÷12	21	31	8,0	6	23
BDE 16	black	11÷15	25	34	10,5	7	25
BDE 16WT	white	11÷15	25	34	10,5	7	25
BDE 21	black	14÷18	29	42	13,5	7	25
BDE 29	black	18÷25	38	50	17,0	7	30
BDE 36	black	24÷34	48	62	22,0	8	34
BDE 42	black	31÷44	55	63	31,0	8	39
BDE 48	black	40÷54	65	72	41,0	8	45
BDE 54	black	52÷66	78	85	51,0	8	50
BDE 54 WT	white	52÷66	78	85	51,0	8	50
BDE 67	black	65÷78	90	97	63,0	8	63

Guide

Rubber grommet, BDE type

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Przepust_gumowy_typu_BDE_EN.pdf	EN	11-09-2025	201.63 KB	PDF	Download
Catalog card	ERGOM_Przepust_gumowy_typu_BDE_PL.pdf	PL	11-09-2025	255.27 KB	PDF	Download
