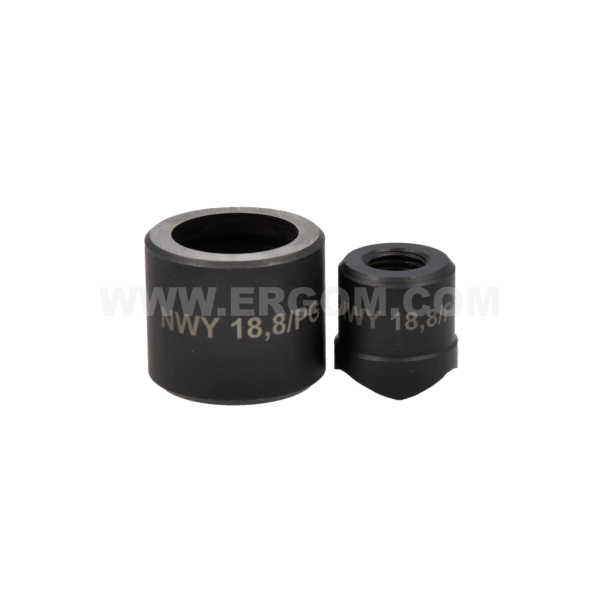

Round punching dies, NWY...

Round punching dies, NWY...

Main data of the product series

Product name
Round punching dies, NWY...
Category
Punching dies for hydraulic punching tools
Note!
Punching dies NWY larger than 37,4 are sold in sets with MOLYKOTE 1000 thread paste. Other sizes available on request.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
NWY 12,2/ M12 E06WD-01060110050 1 1 pcs. Price on request
NWY 18,8/PG11 E06WD-01060110300 1 1 pcs. Price on request
NWY 25,5/M25 E06WD-01060110600 1 1 pcs. Price on request
NWY 28,6/PG21 E06WD-01060110700 1 1 pcs. Price on request
NWY 30,5/M30 E06WD-01060110730 1 1 pcs. Price on request
NWY 37,4/PG29 E06WD-01060110800 1 1 pcs. Price on request
NWY 47,5/PG36 E06WD-01060110900 1 1 pcs. Price on request
NWY 54,5/PG42 E06WD-01060111000 1 1 pcs. Price on request
NWY 59,8/PG48 E06WD-01060111100 1 1 pcs. Price on request
NWY 63,5 / M63 E06WD-01060111200 1 1 pcs. Price on request

Selected lines: 0

Technical data

Name Internal thread of the punch K Diameter of the hole to be cut A [mm] Diameter of the through hole D [mm]
NWY 12,2/ M12 3/8" UNF 12,2 9,55
NWY 18,8/PG11 3/8" UNF 18,8 9,55
NWY 25,5/M25 3/8" UNF 25,5 9,55
NWY 28,6/PG21 3/8" UNF 28,6 9,55
NWY 30,5/M30 3/8" UNF 30,5 9,55
NWY 37,4/PG29 3/4" UNF 37,4 19,05
NWY 47,5/PG36 3/4" UNF 47,5 19,05
NWY 54,5/PG42 3/4" UNF 54,5 19,05
NWY 59,8/PG48 3/4" UNF 59,8 19,05
NWY 63,5 / M63 3/4" UNF 63,5 19,05

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Wycinaki_okragle_NWY_EN.pdf EN 30-05-2025 162.2 KB PDF Download
Catalog card ERGOM_Wycinaki_okragle_NWY_PL.pdf PL 30-05-2025 201.38 KB PDF Download
