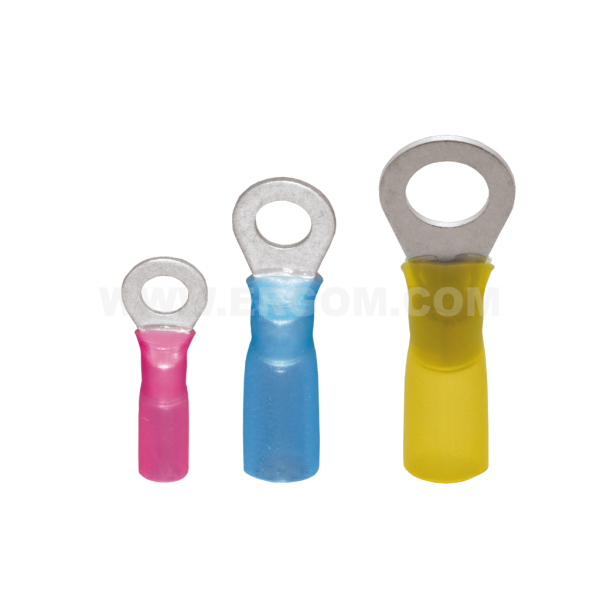

Ring terminals in heat-shrink insulation, KOIT type

Ring terminals in heat-shrink insulation, KOIT type

Main data of the product series

Product name: Ring terminals in heat-shrink insulation, KOIT type
Category: Heat-shrink insulation
Operating temperature [°C]: -55 ÷ +105
Surface: tin-plated
Material: Cu
Insulation: heat-shrink sleeve
Note!: Other designs on request.

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
KOIT 1/4	E09KO-02070200201	1	100	pkt.	Price on request
KOIT 1/5	E09KO-02070200301	1	100	pkt.	Price on request
KOIT 2,5/4	E09KO-02070200401	1	100	pkt.	Price on request
KOIT 2,5/5	E09KO-02070200501	1	100	pkt.	Price on request
KOIT 2,5/6	E09KO-02070200601	1	100	pkt.	Price on request
KOIT 6/5	E09KO-02070200701	1	100	pkt.	Price on request
KOIT 6/6	E09KO-02070200801	1	100	pkt.	Price on request
KOIT 6/8	E09KO-02070200901	1	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Insulation	heat-shrink sleeve
Material	Cu
Surface	tin-plated
Operating temperature [°C]	-55 ÷ +105
Shrink temperature [°C]	> 120
Wykonanie	copper part of terminals acc. to DIN 46234 sizes

Name	Insulation colour	Screw hole	L	d	D	e	W	Cross-section [mm²]
KOIT 1/4	red	M4	28	1,6	4,8	18	8,0	0,5÷1
KOIT 1/5	red	M5	30	1,6	4,8	18	9,5	0,5÷1
KOIT 2,5/4	blue	M4	28	2,2	5,8	17	8,5	1,5÷2,5
KOIT 2,5/5	blue	M5	30	2,2	5,8	17	9,5	1,5÷2,5
KOIT 2,5/6	blue	M6	33	2,2	5,8	17	12	1,5÷2,5
KOIT 6/5	yellow	M4	34	3,4	6,8	20	9,5	4÷6
KOIT 6/6	yellow	M5	37	3,4	6,8	20	12	4÷6
KOIT 6/8	yellow	M6	39	3,4	6,8	20	15	4÷6

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Koncowki_oczkowe_w_izolacji_termokurczliwej_typu_KOIT_EN.pdf	EN	04-07-2025	204.56 KB	PDF	Download
Catalog card	ERGOM_Koncowki_oczkowe_w_izolacji_termokurczliwej_typu_KOIT_PL.pdf	PL	04-07-2025	223.92 KB	PDF	Download
