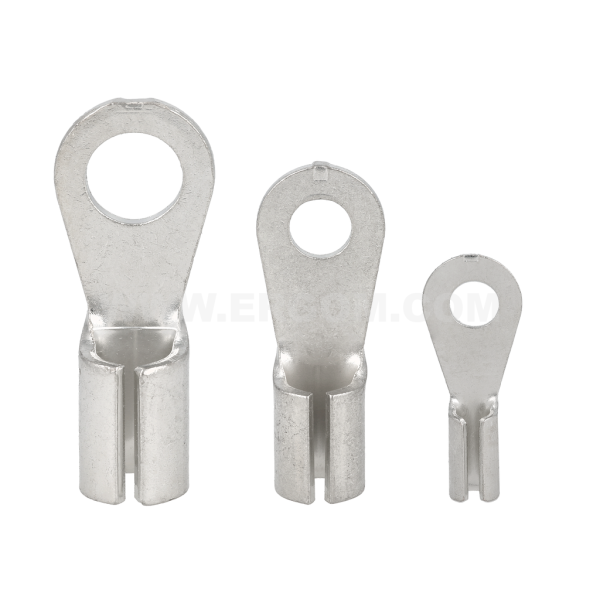

Ring terminals for soldering, B311 type

Main data of the product series

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom
B311 2,5/4	E14KI-03010100100	1	100	pkt.	Price on request
B311 4/4	E14KI-03010100200	1	100	pkt.	Price on request
B311 6/5	E14KI-03010100300	1	100	pkt.	Price on request
B311 6/6S	E14KI-03010100410	1	100	pkt.	Price on request
B311 10/6S	E14KI-03010100500	100	100	pcs.	Price on request
B311 10/8S	E14KI-03010100600	100	100	pcs.	Price on request
B311 16/6	E14KI-03010100700	100	100	pcs.	Price on request
B311 16/8S	E14KI-03010100800	100	100	pcs.	Price on request
B311 25/6	E14KI-03010100900	100	100	pcs.	Price on request
B311 25/8S	E14KI-03010101000	100	100	pcs.	Price on request
B311 35/8	E14KI-03010101100	100	100	pcs.	Price on request
B311 35/10	E14KI-03010101200	100	100	pcs.	Price on request
B311 35/12S	E14KI-03010101300	100	100	pcs.	Price on request
B311 50/10	E14KI-03010101400	100	100	pcs.	Price on request
B311 50/12S	E14KI-03010101500	100	100	pcs.	Price on request
B311 70/10	E14KI-03010101600	100	100	pcs.	Price on request
B311 70/12S	E14KI-03010101700	100	100	pcs.	Price on request
B311 95/10	E14KI-03010101800	100	100	pcs.	Price on request
B311 95/12	E14KI-03010101900	100	100	pcs.	Price on request
B311 150/12	E14KI-03010102200	50	50	pcs.	Price on request

Selected lines: 0

Name	d	D	s	a	E	W	Cross-section [mm²]	BN
B311 2,5/4	2,3	3,3	1,0	8	18	10	2,5	√
B311 4/4	3,0	4,6	1,0	8	18	10	4	√
B311 6/5	3,6	5,6	1,0	11	23	12	6	√
B311 6/6S	3,6	5,6	1,0	11	23	12	6	–
B311 10/6S	4,5	6,7	1,5	12	27	14	10	–
B311 10/8S	4,5	6,7	1,5	12	27	14	10	–
B311 16/6	5,5	8,5	1,5	12	27	14	16	√
B311 16/8S	5,5	8,5	1,5	12	27	14	16	–
B311 25/6	7,0	10,6	1,5	12	27	14	25	√
B311 25/8S	7,0	10,6	1,5	12	27	14	25	–
B311 35/8	8,5	12,5	1,5	16	37	18	35	√
B311 35/10	8,5	12,5	1,5	16	37	22	35	–
B311 35/12S	8,5	12,5	1,5	16	37	22	35	–
B311 50/10	10,0	15,0	1,5	20	43	22	50	√
B311 50/12S	10,0	15,0	1,5	20	43	22	50	–
B311 70/10	12,0	18,0	1,5	20	43	22	70	√
B311 70/12S	12,0	18,0	1,5	20	43	22	70	–
B311 95/10	13,5	19,5	1,5	20	43	22	95	√
B311 95/12	13,5	19,5	1,5	20	43	22	95	–
B311 150/12	17,0	25,0	1,5	24	53	28	150	√

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Koncowki_oczkowe_do_lutowania_B311_EN.pdf	EN	04-07-2025	338.79 KB	PDF	Download
Catalog card	ERGOM_Koncowki_oczkowe_do_lutowania_B311_PL.pdf	PL	04-07-2025	364.99 KB	PDF	Download
