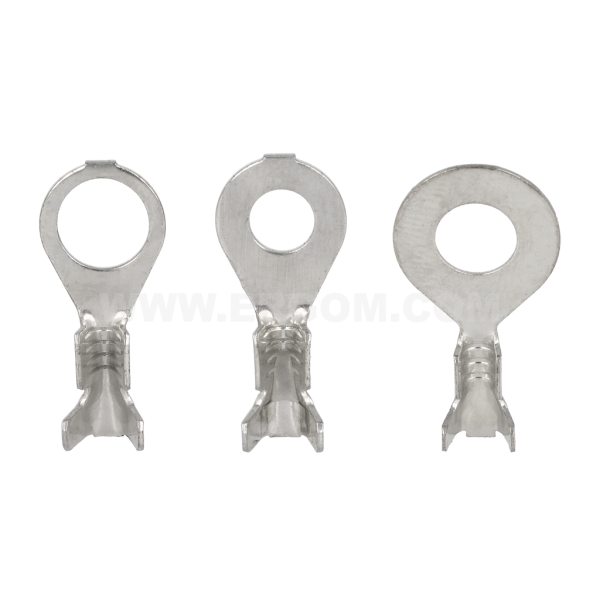

Ring connectors, MO type

Ring connectors, MO type

Main data of the product series

Product name
Ring connectors, MO type
Category
Ring connectors
Surface
tin-plated
Material
brass

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
MO 1/4 E10KN-01050100101 2 100 pkt. Price on request
MO 1/5 E10KN-01050100201 2 100 pkt. Price on request
MO 1/6 E10KN-01050100301 2 100 pkt. Price on request
MO 2,5/3 E10KN-01050100401 2 100 pkt. Price on request
MO 2,5/4 E10KN-01050100501 2 100 pkt. Price on request
MO 2,5/5 E10KN-01050100601 2 100 pkt. Price on request
MO 2,5/6 E10KN-01050100701 2 100 pkt. Price on request
MO 1/3 E10KN-01050100801 1 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Material brass
Surface tin-plated
Name Screw hole d D s L1 L2 w1 w2 Cross-section [mm²]
MO 1/4 M4 4,2 8,6 0,4 19,0 14,6 3,0 4,5 0,5÷1
MO 1/5 M5 5,2 8,6 0,4 19,0 14,6 3,0 4,5 0,5÷1
MO 1/6 M6 6,3 8,6 0,4 19,0 14,6 3,0 4,5 0,5÷1
MO 2,5/3 M3 3,2 7,5 0,5 16,3 12,5 3,5 5,5 1,5÷2,5
MO 2,5/4 M4 4,2 8,6 0,5 19,0 14,6 3,5 5,5 1,5÷2,5
MO 2,5/5 M5 5,2 8,6 0,5 19,0 14,6 3,5 5,5 1,5÷2,5
MO 2,5/6 M6 6,3 8,6 0,5 19,0 14,6 3,5 5,5 1,5÷2,5
MO 1/3 M3 3,2 8,6 0,4 19,0 14,6 3,0 4,5 0,5÷1

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Konektor_oczkowe_typu_MO_EN.pdf EN 04-07-2025 197.93 KB PDF Download
Catalog card ERGOM_Konektor_oczkowe_typu_MO_PL.pdf PL 04-07-2025 240.11 KB PDF Download
