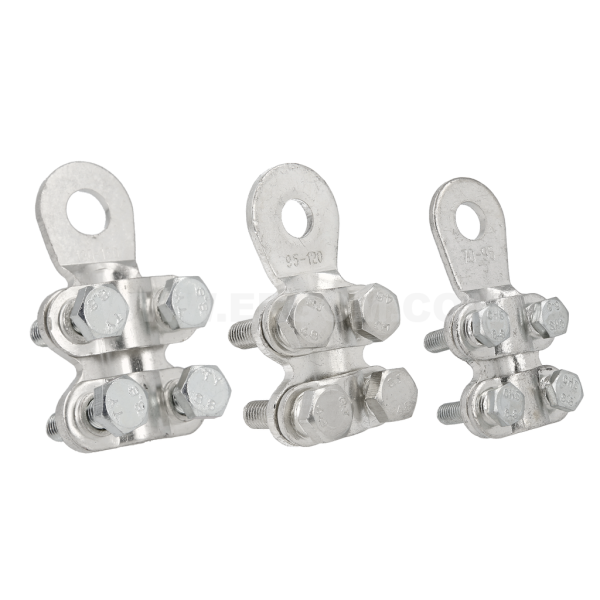

Ring cable terminals screwed, KSC type

Ring cable terminals screwed, KSC type

Main data of the product series

Product name
Ring cable terminals screwed, KSC type
Category
Twisted
Material
Cu
Surface
tin-plated

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KSC 95/10 E14KI-01010201401 10 10 pcs. Price on request
KSC 120/10 E14KI-01010201601 10 10 pcs. Price on request
KSC 120/12 E14KI-01010201701 10 10 pcs. Price on request
KSC 120/16 E14KI-01010201800 10 10 pcs. Price on request
KSC 150/12 E14KI-01010202000 10 10 pcs. Price on request
KSC 240/12 E14KI-01010202301 10 10 pcs. Price on request
KSC 240/16 E14KI-01010202400 10 10 pcs. Price on request
KSC 240/20 E14KI-01010202500 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface tin-plated
Name s B E W Cross-section [mm²] Screw hole Screw Recommended tightening torque [Nm]
KSC 95/10 3,0 35,0 57,0 23,5 70÷95 M10 M6x26 8
KSC 120/10 3,5 42,0 60,0 28,5 95÷120 M10 M8x30 20
KSC 120/12 3,5 42,0 60,0 28,5 95÷120 M12 M8x30 20
KSC 120/16 3,5 42,0 60,0 28,5 95÷120 M16 M8x30 20
KSC 150/12 3,0 42,0 61,0 30,0 120÷150 M12 M8x25 20
KSC 240/12 4,0 44,0 65,0 30,0 150÷240 M12 M8x30 20
KSC 240/16 4,0 44,0 65,0 30,0 150÷240 M16 M8x30 20
KSC 240/20 4,0 44,0 65,0 30,0 150÷240 M20 M8x30 20

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Koncowki_skrecane_cztero_srubowe_oczkowe_typu_KSC_EN.pdf EN 22-09-2025 252.1 KB PDF Download
Catalog card ERGOM_Koncowki_skrecane_cztero_srubowe_oczkowe_typu_KSC_PL.pdf PL 22-09-2025 294.49 KB PDF Download
