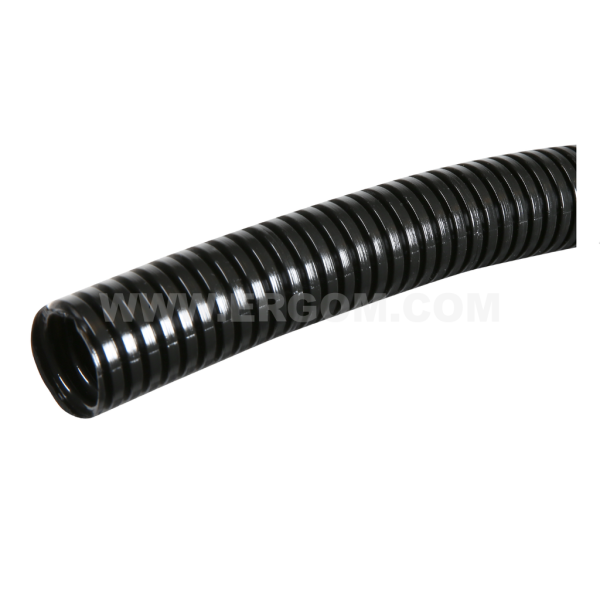

Reinforced corrugated protective conduit made of polyamide, WTE...W type

Reinforced corrugated protective conduit made of polyamide, WTE...W type

Main data of the product series

Product name
Reinforced corrugated protective conduit made of polyamide, WTE...W type
Category
Corrugated conduits made of polyamide
Material
polyamide 6
Colour
black (RAL 9005)
Operating temperature [°C]
-5 ÷ +90 (without moving: -40 ÷ +120)
Compression strength
600 N
IP degree of protection
IP67
Flammability class
EN 61386-1:2011 - flame retardant, UL 94 HB, halogen free

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
WTE 7W E03DK-09050100100 100 50 m. Price on request
WTE 9W E03DK-09050100200 50 50 m. Price on request
WTE 11W E03DK-09050100300 50 50 m. Price on request
WTE 13W E03DK-09050100400 50 50 m. Price on request
WTE 16W E03DK-09050100500 50 50 m. Price on request
WTE 21W E03DK-09050100600 50 50 m. Price on request
WTE 29W E03DK-09050100700 100 50 m. Price on request
WTE 36W E03DK-09050100800 50 25 m. Price on request
WTE 48W E03DK-09050100900 50 25 m. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6
Halogen-free yes
Operating temperature [°C] -5 ÷ +90 (without moving: -40 ÷ +120)
Colour black (RAL 9005)
Compression strength 600 N
Stopień ochrony IP67
Klasa palności EN 61386-1:2011 - flame retardant, UL 94 HB, halogen free
Normy EN 61386-1:2222; EN 61386-23
Name Min. bending radius [mm] Nominal size of the connector d D
WTE 7W 25 7 6,2 10,0
WTE 9W 35 9 9,0 13,0
WTE 11W 45 11 11,3 15,8
WTE 13W 50 13 13,6 18,6
WTE 16W 60 16 15,9 21,2
WTE 21W 70 21 21,3 28,5
WTE 29W 75 29 26,8 34,5
WTE 36W 90 36 34,6 42,5
WTE 48W 95 48 46,0 54,5

Guide

Reinforced corrugated protective conduit made of polyamide, WTE...W type
Reinforced corrugated protective conduit made of polyamide, WTE...W type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Rura_ochronna_karbowana_z_poliamidu_–_wzmocniona_typu_WTE_W_EN.pdf EN 14-05-2025 270.13 KB PDF Download
Catalog card ERGOM_Rura_ochronna_karbowana_z_poliamidu_–_wzmocniona_typu_WTE_W_PL.pdf PL 14-05-2025 283.78 KB PDF Download
