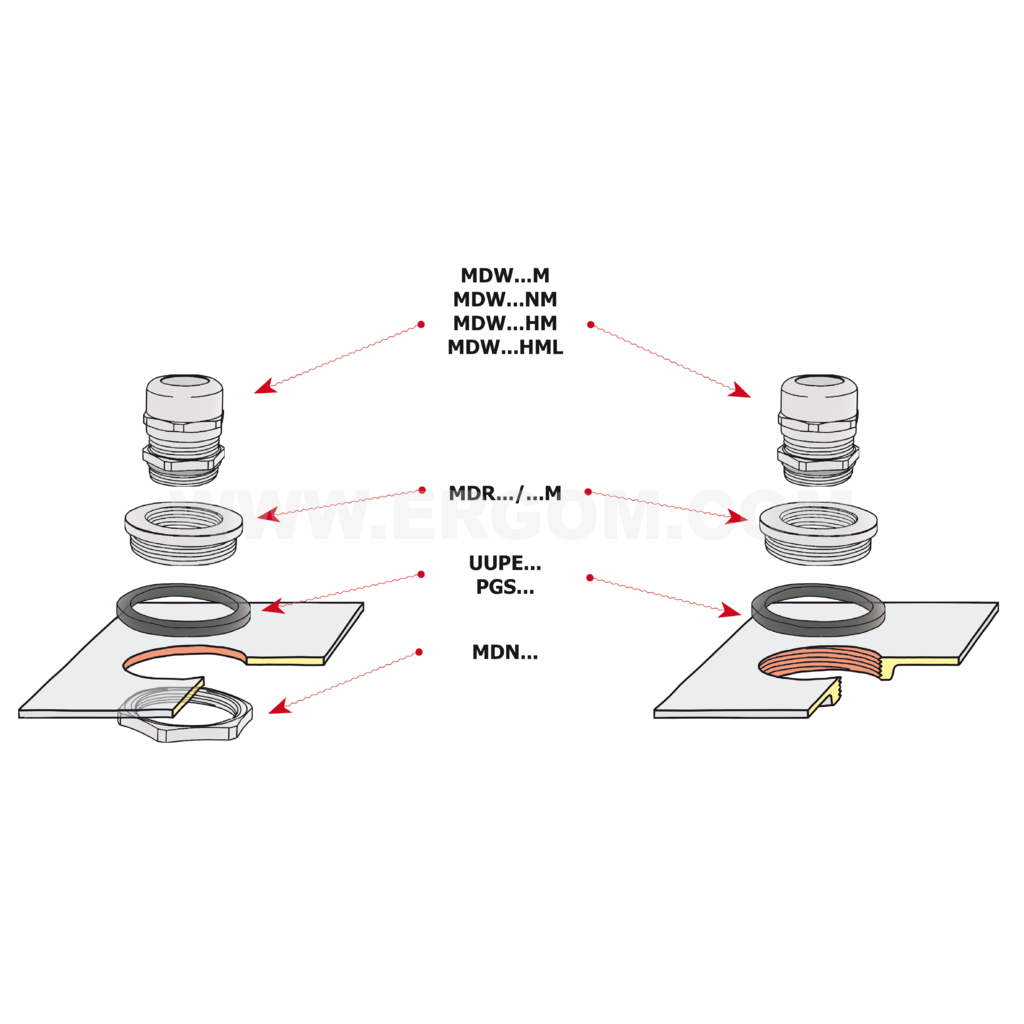

Reducer, MDR...PG/M type

Reducer, MDR...PG/M type

Main data of the product series

Product name
Reducer, MDR...PG/M type
Category
Metal accessories
Material
nickel-plated brass
Note!
Nuts and reducer seals have to be ordered separately.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
MDR 9/12M E03DK-04060300103 10 10 pcs. Price on request
MDR 11/12M E03DK-04060300203 10 10 pcs. Price on request
MDR 13/16M E03DK-04060300303 10 10 pcs. Price on request
MDR 16/16M E03DK-04060300403 10 10 pcs. Price on request
MDR 21/25M E03DK-04060300503 10 10 pcs. Price on request
MDR 29/32M E03DK-04060300603 10 10 pcs. Price on request
MDR 36/40M E03DK-04060300703 1 1 pcs. Price on request
MDR 42/50M E03DK-04060300803 1 1 pcs. Price on request
MDR 48/50M E03DK-04060300903 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material nickel-plated brass
Name Reduction, PG/M E L Ø D
MDR 9/12M PG9 / M12x1,5 6,5 2,5 18
MDR 11/12M PG11 / M12x1,5 7,0 3,0 21
MDR 13/16M PG13,5 / M16x1,5 7,0 3,0 23
MDR 16/16M PG16 / M16x1,5 8,0 3,0 26
MDR 21/25M PG21 / M25x1,5 8,0 3,5 32
MDR 29/32M PG29 / M32x1,5 8,5 4,0 41
MDR 36/40M PG36 / M40x1,5 8,5 4,5 51
MDR 42/50M PG42 / M50x1,5 10,0 4,5 58
MDR 48/50M PG48 / M50x1,5 11,0 5,0 64

Guide

Reducer, MDR...PG/M type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Redukcja_typu_MDR_PG_M_EN.pdf EN 14-05-2025 190.67 KB PDF Download
Catalog card ERGOM_Redukcja_typu_MDR_PG_M_PL.pdf PL 14-05-2025 231.56 KB PDF Download
