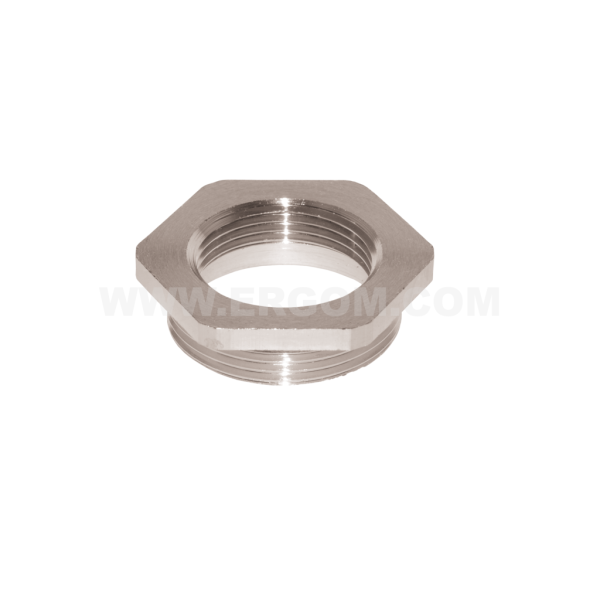

Reducer, MDR...M/M type

Reducer, MDR...M/M type

Main data of the product series

Product name: Reducer, MDR...M/M type
Category: Metal accessories
Material: nickel-plated brass
Note!: Nuts and reducer seals have to be ordered separately.

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
MDR 16M/12M	E03DK-04060200103	10	10	pcs.	Price on request
MDR 20M/16M	E03DK-04060200203	10	10	pcs.	Price on request
MDR 25M/16M	E03DK-04060200303	10	10	pcs.	Price on request
MDR 25M/20M	E03DK-04060200403	10	10	pcs.	Price on request
MDR 32M/16M	E03DK-04060200503	10	10	pcs.	Price on request
MDR 32M/20M	E03DK-04060200603	10	10	pcs.	Price on request
MDR 32M/25M	E03DK-04060200703	10	10	pcs.	Price on request
MDR 40M/16M	E03DK-04060200803	10	10	pcs.	Price on request
MDR 40M/20M	E03DK-04060200903	10	10	pcs.	Price on request
MDR 40M/25M	E03DK-04060201003	10	10	pcs.	Price on request
MDR 40M/32M	E03DK-04060201103	10	10	pcs.	Price on request
MDR 50M/40M	E03DK-04060201203	1	1	pcs.	Price on request
MDR 63M/40M	E03DK-04060201303	1	1	pcs.	Price on request
MDR 63M/50M	E03DK-04060201403	1	1	pcs.	Price on request

Selected lines: 0

Technical data

General data

Material	nickel-plated brass

Name	Reduction, M2/M2	E	L	For spanner A
MDR 16M/12M	M16x1,5 / M12x1,5	6	2,5	18
MDR 20M/16M	M20x1,5 / M16x1,5	6	3,0	22
MDR 25M/16M	M25x1,5 / M16x1,5	7	3,0	28
MDR 25M/20M	M25x1,5 / M20x1,5	7	3,0	28
MDR 32M/16M	M32x1,5 / M16x1,5	8	3,5	36
MDR 32M/20M	M32x1,5 / M20x1,5	8	3,5	36
MDR 32M/25M	M32x1,5 / M25x1,5	8	3,5	36
MDR 40M/16M	M40x1,5 / M16x1,5	8	4,0	43
MDR 40M/20M	M40x1,5 / M20x1,5	8	4,0	43
MDR 40M/25M	M40x1,5 / M25x1,5	8	4,0	43
MDR 40M/32M	M40x1,5 / M32x1,5	8	4,0	43
MDR 50M/40M	M50x1,5 / M40x1,5	9	4,0	55
MDR 63M/40M	M63x1,5 / M40x1,5	10	5,0	67
MDR 63M/50M	M63x1,5 / M50x1,5	10	5,0	67

Guide

Reducer, MDR...M/M type

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Redukcja_typu_MDR_M_M_EN.pdf	EN	07-10-2025	193.74 KB	PDF	Download
Catalog card	ERGOM_Redukcja_typu_MDR_M_M_PL.pdf	PL	07-10-2025	234.36 KB	PDF	Download
