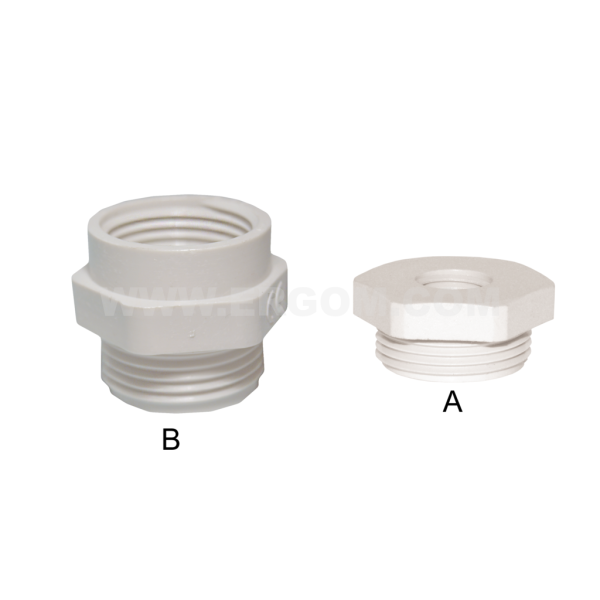

Reducer, DR type

Reducer, DR type

Main data of the product series

Product name
Reducer, DR type
Category
Plastic accessories
Operating temperature [°C]
-30 ÷ +80
Colour
grey (RAL 7035)
Material
polyamide 6
Note!

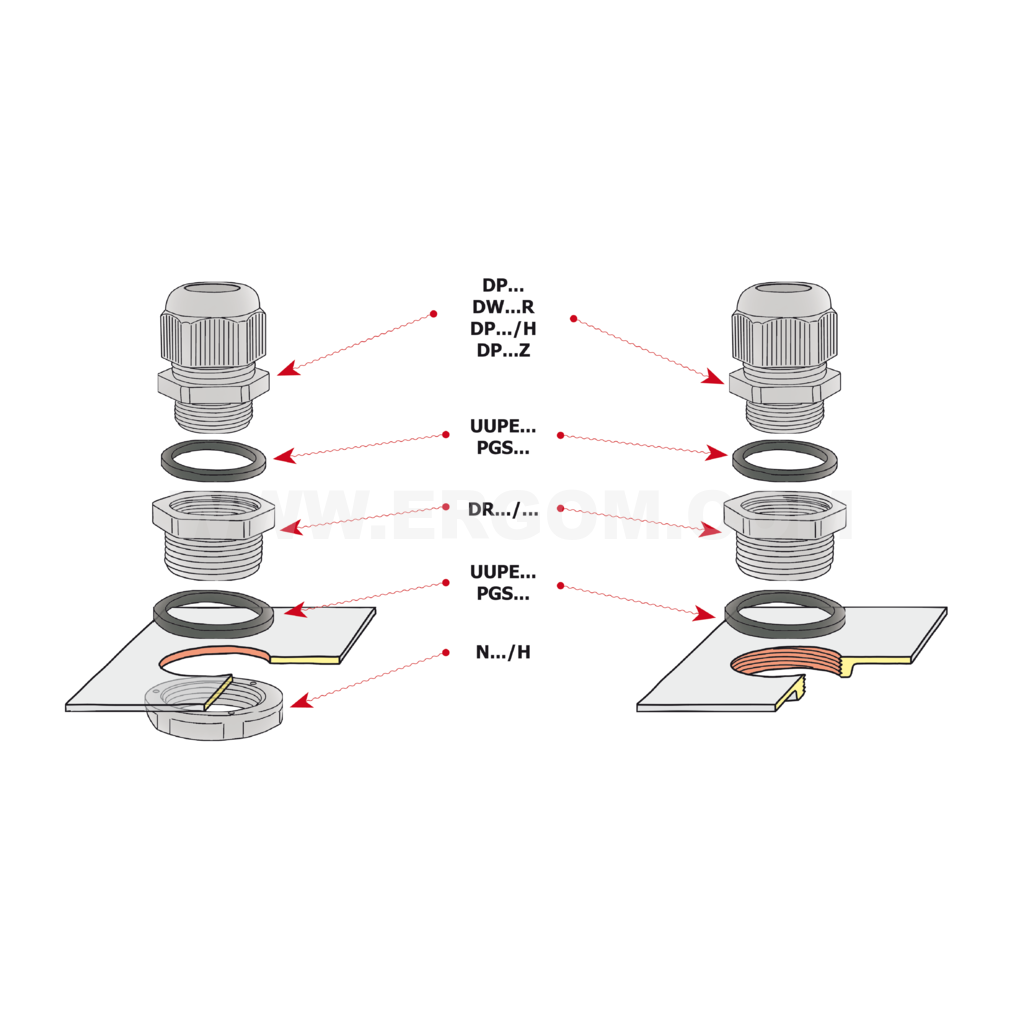

Nuts and seals have to be ordered separately.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
DR 9/7 E03DK-02120100103 10 10 pcs. Price on request
DR 11/9 E03DK-02120100203 10 10 pcs. Price on request
DR 13/9 E03DK-02120100303 10 10 pcs. Price on request
DR 13/11 E03DK-02120100403 10 10 pcs. Price on request
DR 16/9 E03DK-02120100503 10 10 pcs. Price on request
DR 16/11 E03DK-02120100603 10 10 pcs. Price on request
DR 16/13 E03DK-02120100703 10 10 pcs. Price on request
DR 21/13 E03DK-02120100803 10 10 pcs. Price on request
DR 21/11 E03DK-02120100903 10 10 pcs. Price on request
DR 21/16 E03DK-02120101003 10 10 pcs. Price on request
DR 29/21 E03DK-02120101103 10 10 pcs. Price on request
DR 36/29 E03DK-02120101201 10 10 pcs. Price on request
DR 42/36 E03DK-02120101303 1 1 pcs. Price on request
DR 48/36 E03DK-02120101403 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6
Halogen-free yes
Colour grey (RAL 7035)
Operating temperature [°C] -30 ÷ +80
Name Reduction, PG1/PG2 E L For spanner A
DR 9/7 PG9 / PG7 7 10,0 19
DR 11/9 PG11 / PG9 8 12,5 22
DR 13/9 PG13 / PG9 9 10,5 24
DR 13/11 PG13,5 / PG11 9 12,0 24
DR 16/9 PG16 / PG9 9 12,0 27
DR 16/11 PG16 / PG11 9 13,0 27
DR 16/13 PG16 / PG1,35 9 13,0 27
DR 21/13 PG21 / PG13,5 10 13,0 32
DR 21/11 PG21 / PG11 10 12,5 32
DR 21/16 PG21 / PG16 10 13,0 32
DR 29/21 PG29 / PG21 12 16,5 41
DR 36/29 PG36 / PG29 14 16,5 55
DR 42/36 PG42 / PG36 16 18,0 60
DR 48/36 PG48 / PG36 16 18,5 65
