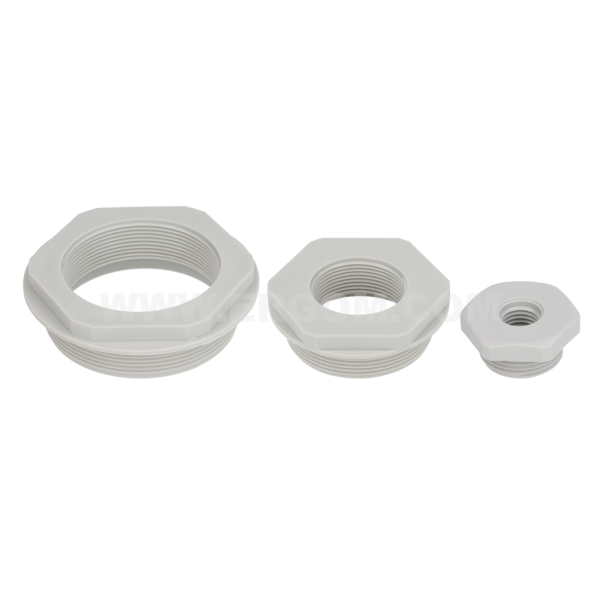

Reducer, DR...M/M type

Reducer, DR...M/M type

Main data of the product series

Product name
Reducer, DR...M/M type
Category
Plastic accessories
Operating temperature [°C]
-30 ÷ +80
Colour
grey (RAL 7035)
Material
polyamide 6
Note!
Nuts and seals have to be ordered separately.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
DR 16M/12M E03DK-02120300103 10 10 pcs. Price on request
DR 20M/12M E03DK-02120300203 10 10 pcs. Price on request
DR 20M/16M E03DK-02120300303 10 10 pcs. Price on request
DR 25M/12M E03DK-02120300403 10 10 pcs. Price on request
DR 25M/16M E03DK-02120300503 10 10 pcs. Price on request
DR 25M/20M E03DK-02120300603 10 10 pcs. Price on request
DR 32M/12M E03DK-02120300701 10 10 pcs. Price on request
DR 32M/16M E03DK-02120300801 10 10 pcs. Price on request
DR 32M/20M E03DK-02120300901 10 10 pcs. Price on request
DR 32M/25M E03DK-02120301001 10 10 pcs. Price on request
DR 40M/16M E03DK-02120301101 10 10 pcs. Price on request
DR 40M/20M E03DK-02120301201 10 10 pcs. Price on request
DR 40M/25M E03DK-02120301301 10 10 pcs. Price on request
DR 40M/32M E03DK-02120301401 10 10 pcs. Price on request
DR 50M/20M E03DK-02120301503 1 1 pcs. Price on request
DR 50M/25M E03DK-02120301603 1 1 pcs. Price on request
DR 50M/32M E03DK-02120301703 1 1 pcs. Price on request
DR 50M/40M E03DK-02120301803 1 1 pcs. Price on request
DR 63M/25M E03DK-02120301903 1 1 pcs. Price on request
DR 63M/32M E03DK-02120302003 1 1 pcs. Price on request
DR 63M/40M E03DK-02120302103 1 1 pcs. Price on request
DR 63M/50M E03DK-02120302203 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6
Halogen-free yes
Colour grey (RAL 7035)
Operating temperature [°C] -30 ÷ +80
Name Reduction, M1/M2 E L For spanner A
DR 16M/12M M16x1,5 / M12x1,5 8,0 4 24
DR 20M/12M M20x1,5 / M12x1,5 8,0 6 24
DR 20M/16M M20x1,5 / M16x1,5 8,5 6 24
DR 25M/12M M25x1,5 / M12x1,5 10,0 6 32
DR 25M/16M M25x1,5 / M16x1,5 10,0 6 32
DR 25M/20M M25x1,5 / M20x1,5 10,0 6 32
DR 32M/12M M32x1,5 / M12x1,5 10,0 6 36
DR 32M/16M M32x1,5 / M16x1,5 10,0 6 36
DR 32M/20M M32x1,5 / M20x1,5 10,0 6 36
DR 32M/25M M32x1,5 / M25x1,5 10,0 6 36
DR 40M/16M M40x1,5 / M16x1,5 12,0 7 46
DR 40M/20M M40x1,5 / M20x1,5 12,0 7 46
DR 40M/25M M40x1,5 / M25x1,5 12,0 7 46
DR 40M/32M M40x1,5 / M32x1,5 12,0 7 46
DR 50M/20M M50x1,5 / M20x1,5 12,0 7 55
DR 50M/25M M50x1,5 / M25x1,5 14,0 7 55
DR 50M/32M M50x1,5 / M32x1,5 14,0 7 55
DR 50M/40M M50x1,5 / M40x1,5 14,0 7 55
DR 63M/25M M63x1,5 / M25x1,5 15,0 7 65
DR 63M/32M M63x1,5 / M32x1,5 15,0 7 65
DR 63M/40M M63x1,5 / M40x1,5 15,0 7 65
DR 63M/50M M63x1,5 / M50x1,5 15,0 7 65

Guide

Reducer, DR...M/M type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Redukcja_typu_DR_M_M_EN.pdf EN 14-05-2025 195.47 KB PDF Download
Catalog card ERGOM_Redukcja_typu_DR_M_M_PL.pdf PL 14-05-2025 245.86 KB PDF Download
