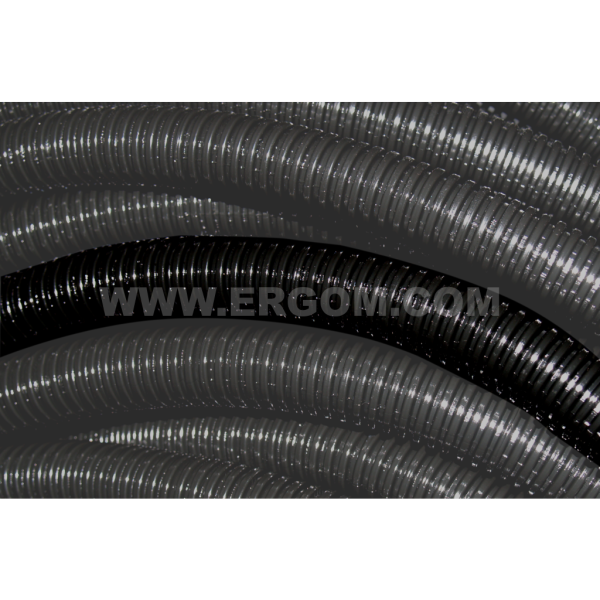

Railway corrugated protective conduit made of polyamide, WTE…RA type

Railway corrugated protective conduit made of polyamide, WTE…RA type

Main data of the product series

Product name
Railway corrugated protective conduit made of polyamide, WTE…RA type
Category
Corrugated conduits made of polyamide
Material
polyamide 6
Colour
black (RAL 9005)
Operating temperature [°C]
-5 ÷ +90 (without moving: -40 ÷ +120)
Compression strength
350 N
IP degree of protection
IP67
Flammability class
UL 94 V2

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
WTE 9RA E03DK-09080100200 250 50 m. Price on request
WTE 11RA E03DK-09080100300 250 50 m. Price on request
WTE 13RA E03DK-09080100400 250 50 m. Price on request
WTE 16RA E03DK-09080100500 250 50 m. Price on request
WTE 21RA E03DK-09080100600 250 50 m. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6
Halogen-free yes
Operating temperature [°C] -5 ÷ +90 (without moving: -40 ÷ +120)
Colour black (RAL 9005)
Compression strength 350 N
Stopień ochrony IP67
Klasa palności UL 94 V2
Normy EN 45545-2:2013+A1:2015
Name Min. bending radius [mm] Nominal size of the connector d D
WTE 9RA 30 9 9,6 13,0
WTE 11RA 35 11 11,6 15,8
WTE 13RA 40 13 14,0 18,6
WTE 16RA 45 16 16,5 21,2
WTE 21RA 50 21 21,7 28,5

Guide

Railway corrugated protective conduit made of polyamide, WTE…RA type
Railway corrugated protective conduit made of polyamide, WTE…RA type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Rura_ochronna_korugowana_kolejowa_typu_WTE_RA_EN.pdf EN 14-05-2025 311.43 KB PDF Download
Catalog card ERGOM_Rura_ochronna_korugowana_kolejowa_typu_WTE_RA_PL.pdf PL 14-05-2025 327.4 KB PDF Download
