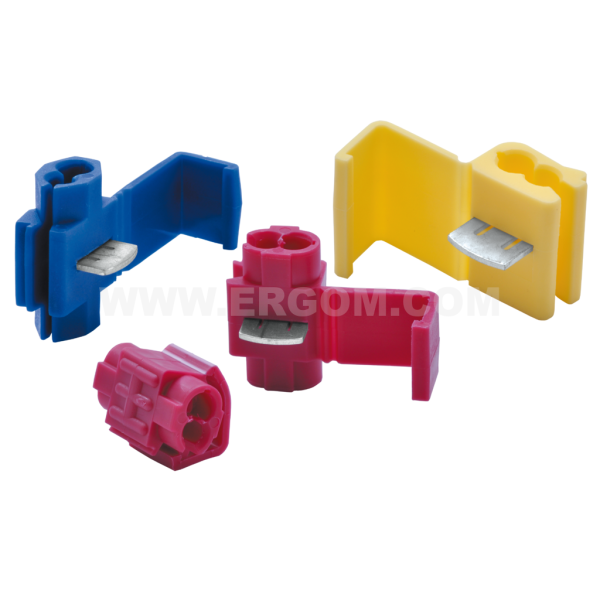

Quick splice connectors, LPO type

Quick splice connectors, LPO type

Main data of the product series

Product name: Quick splice connectors, LPO type
Category: PA insulation
Operating temperature [°C]: -30 ÷ +95
Insulation: polyamide 6.6
Surface: tin-plated
Material: Cu

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
LPO 1	E10KN-03050200101	1	100	pkt.	Price on request
LPO 2,5	E10KN-03050200201	1	100	pkt.	Price on request
LPO 6	E10KN-03050200301	1	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Insulation	polyamide 6.6
Material	Cu
Surface	tin-plated
Operating temperature [°C]	-30 ÷ +95

Name	Insulation colour	L	W	Cross-section [mm²]
LPO 1	red	27,0	20,0	0,5÷1
LPO 2,5	blue	27,0	20,0	0,75÷2,5
LPO 6	yellow	34,5	20,5	4÷6

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Lacznik_przewodow_obustronny_typ_LPO_EN.pdf	EN	04-07-2025	167.1 KB	PDF	Download
Catalog card	ERGOM_Lacznik_przewodow_obustronny_typ_LPO_PL.pdf	PL	04-07-2025	206.65 KB	PDF	Download
