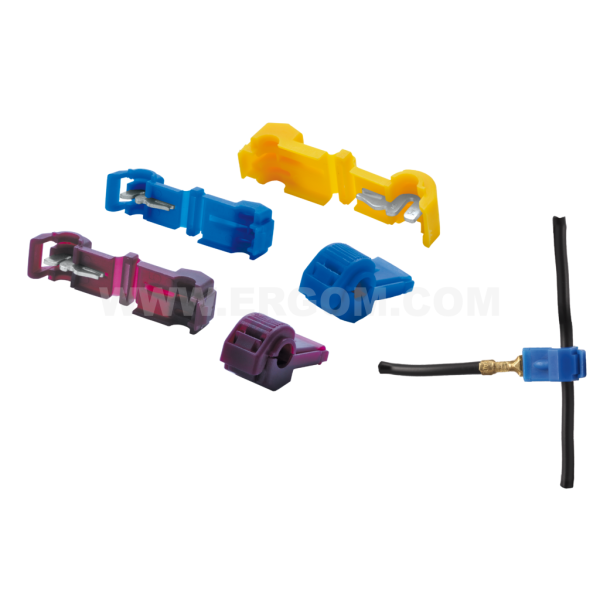

Quick splice connectors, LP type

Quick splice connectors, LP type

Main data of the product series

Product name: Quick splice connectors, LP type
Category: PA insulation
Operating temperature [°C]: -30 ÷ +95
Insulation: polyamide 6.6
Surface: tin-plated
Material: Cu
Note!: Suggested connector: 6.3x0.8

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
LP 1	E10KN-03050100101	1	100	pkt.	Price on request
LP 2,5	E10KN-03050100201	1	100	pkt.	Price on request
LP 6	E10KN-03050100301	1	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Insulation	polyamide 6.6
Material	Cu
Surface	tin-plated
Operating temperature [°C]	-30 ÷ +95
L	38
W	10

Name	Insulation colour	Cross-section [mm²]
LP 1	red	0,5÷1
LP 2,5	blue	0,75÷2,5
LP 6	yellow	4÷6

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Laczniki_przewodow_typ_LP_EN.pdf	EN	04-07-2025	270.63 KB	PDF	Download
Catalog card	ERGOM_Laczniki_przewodow_typ_LP_PL.pdf	PL	04-07-2025	311 KB	PDF	Download
